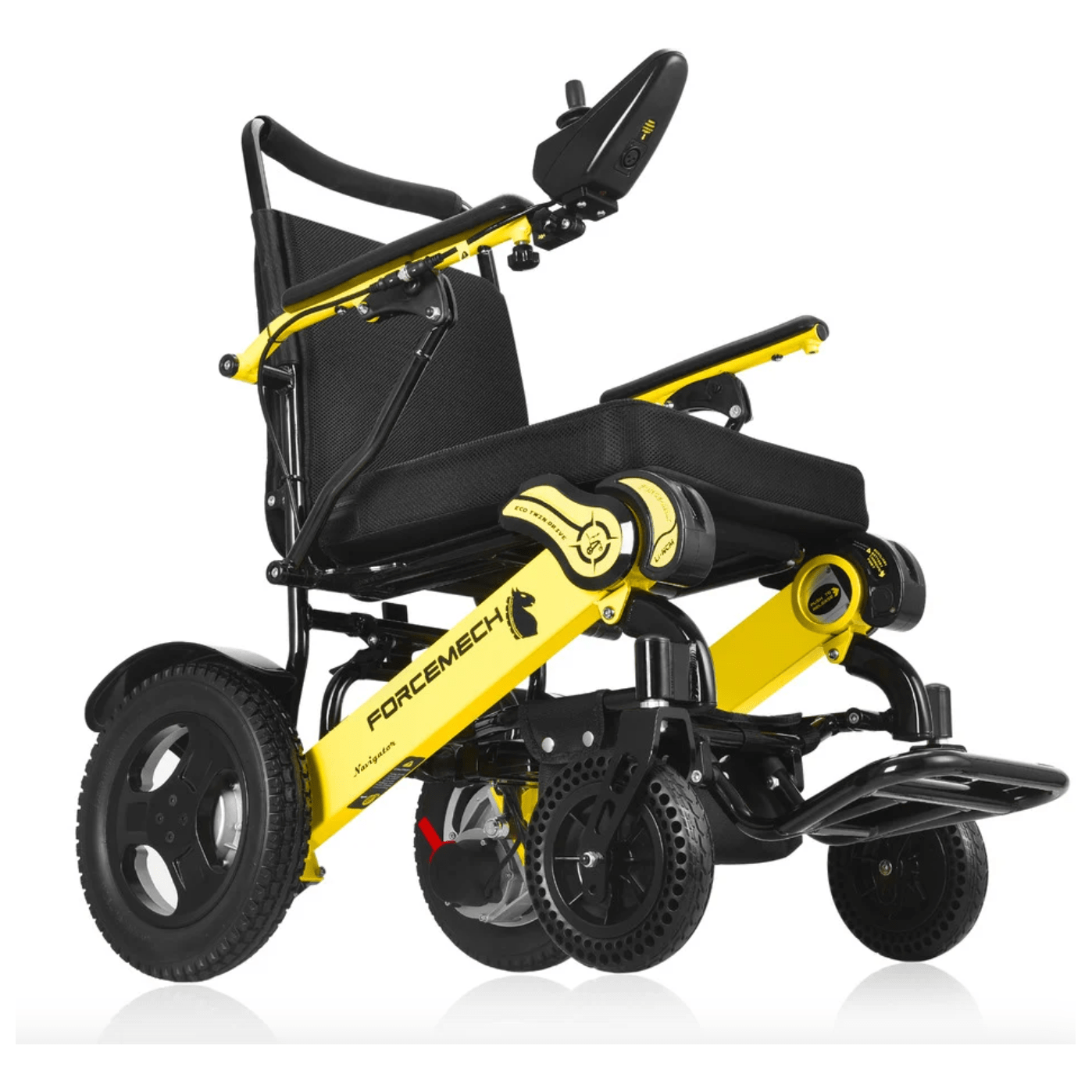

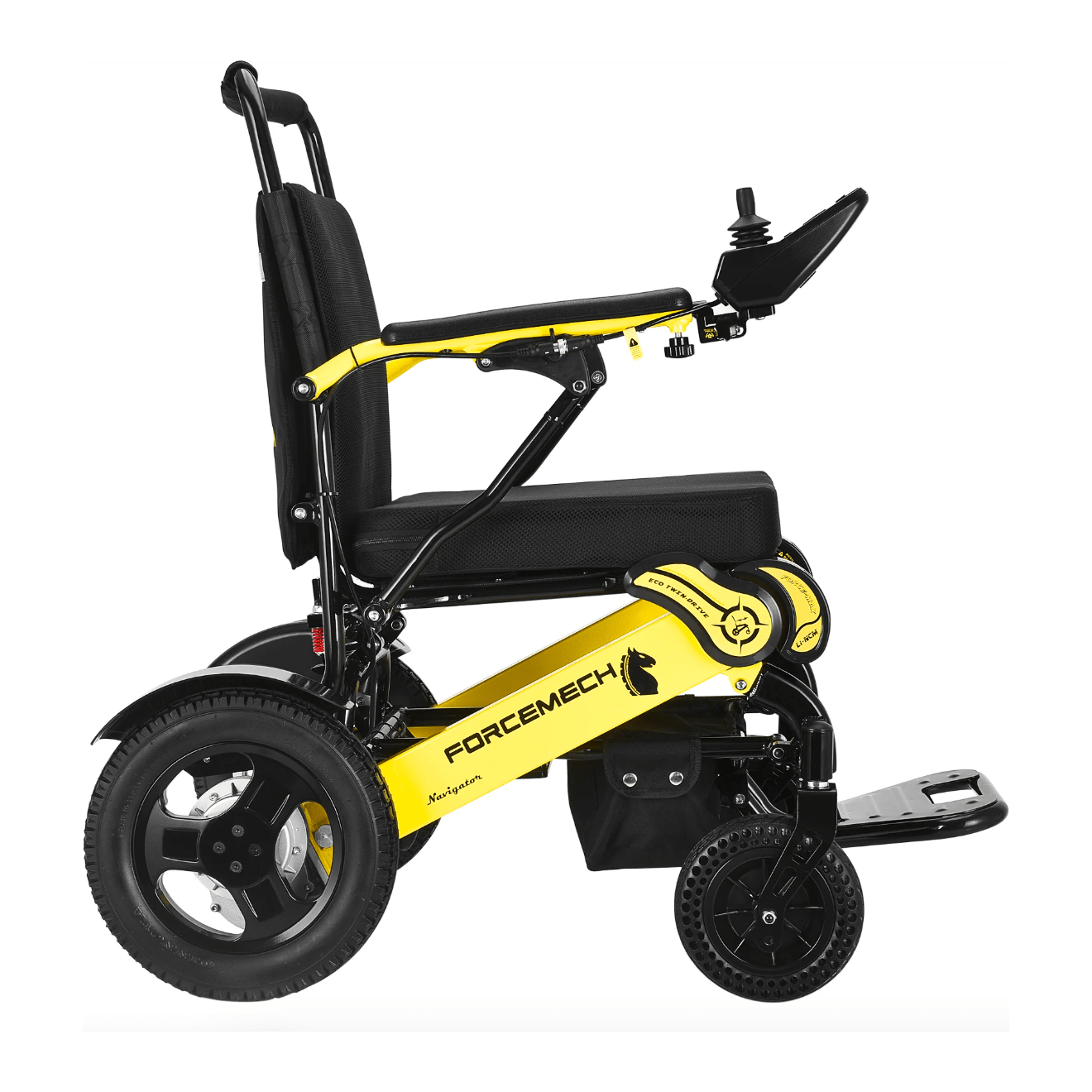

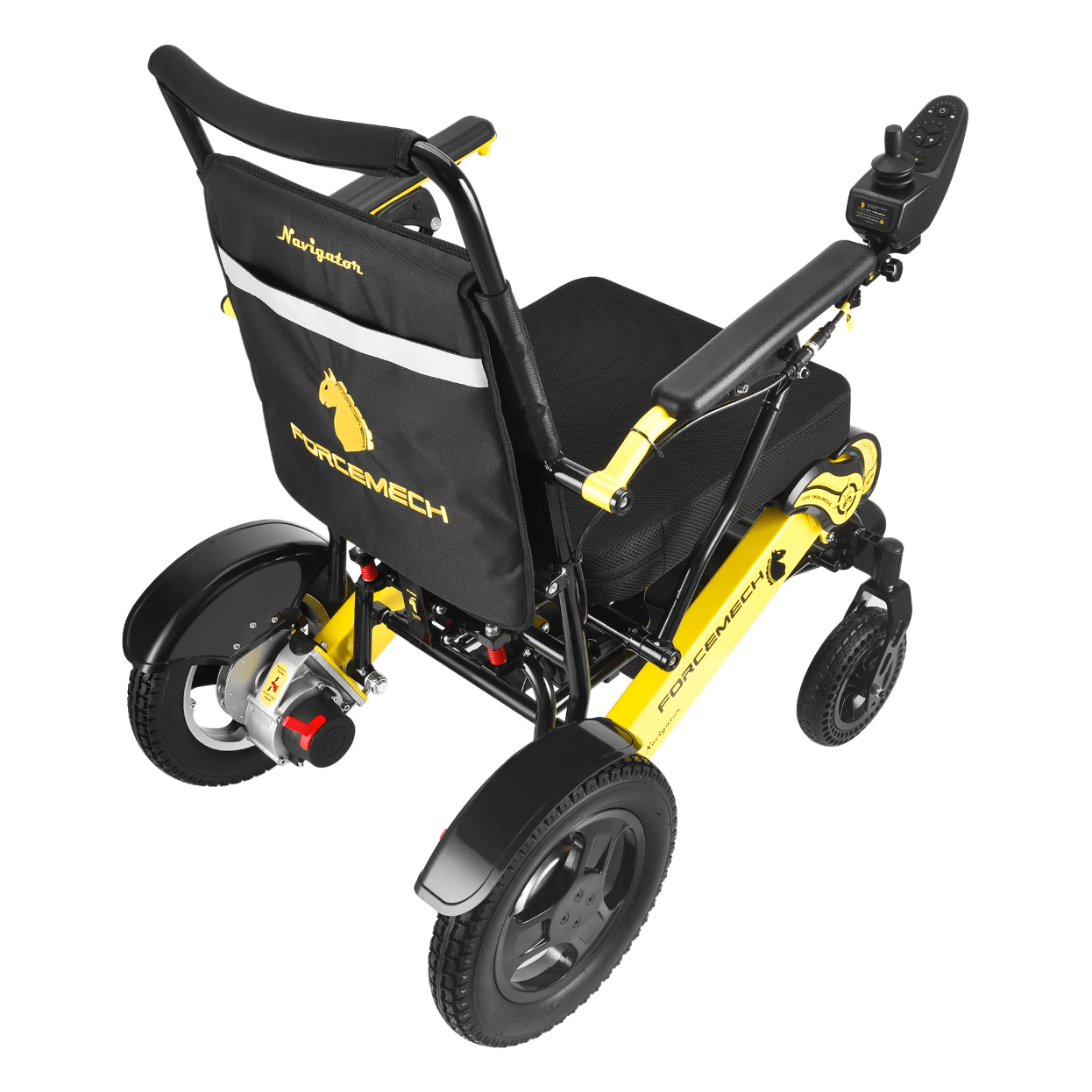

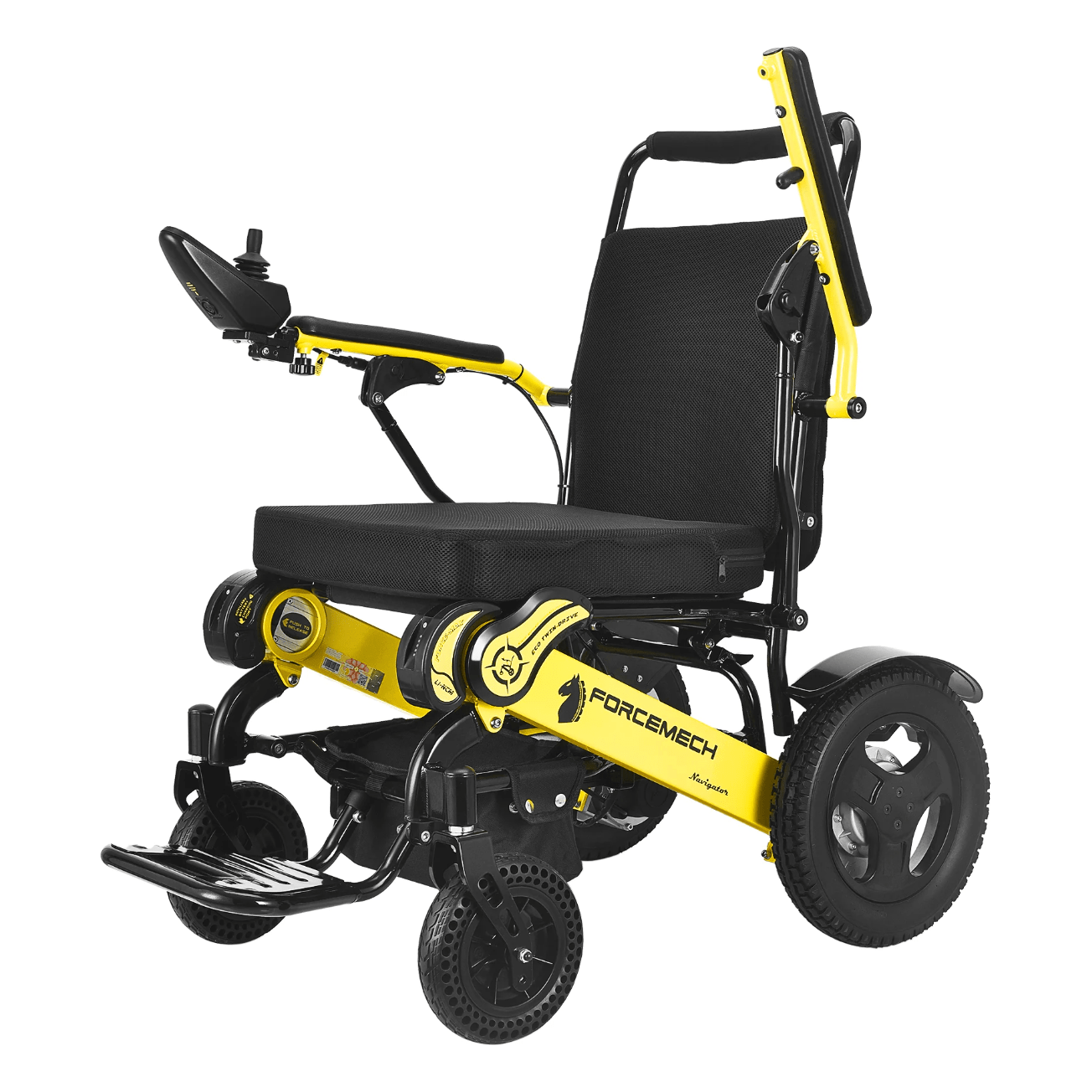

Forcemech Navigator Bariatric Portable Power Wheelchair

About the Forcemech Navigator Power Chair:

Meet the Forcemech Navigator—one of the most trusted names in rugged mobility. Recommended as the best all-terrain power wheelchair for five consecutive years, the Navigator delivers unmatched performance across sidewalks, trails, grass, and more. Built tough, yet foldable for travel, this chair is the perfect fusion of strength and convenience. Comes standard with TWO batteries!

This new Navigator model takes everything users love and turns it up a notch with new anti-tip wheels, tuned brushless motors for longer ride times, and brand-new convenience accessories like a cup holder and side bags. Whether you're exploring outdoors or navigating daily life, this is the chair built to go anywhere.

Key Features:

• Maximum Stability: Rear anti-tip wheels for added safety on inclines and uneven terrain
• Smooth Ride: 4-point suspension and large wheels for rough terrain comfort
• Quick Folding: Compact foldable frame for easy storage and transport
• Extended Travel: Dual Forcemax® 24V 6.6Ah lithium batteries for up to 10 miles per charge
• High Capacity: Supports riders up to 397 lbs
• Durable Build: Lightweight aluminum alloy frame with polyurethane no-flat tires
• All-Terrain Ready: Powerful dual 250W brushless motors and electromagnetic brakes

Specifications:

Power Chair Weight (with both batteries): 60 lbs

Power Chair Weight (without batteries): 52 lbs

Battery Weight: 4 lbs each (2x)

Maximum Weight Capacity: 397 lbs

Maximum Climbing Slope: 6 degrees

Maximum Speed: 4 mph

Maximum Travel Distance: 10 miles

Unfolding Dimensions (L x W x H): 38" x 25" x 37"

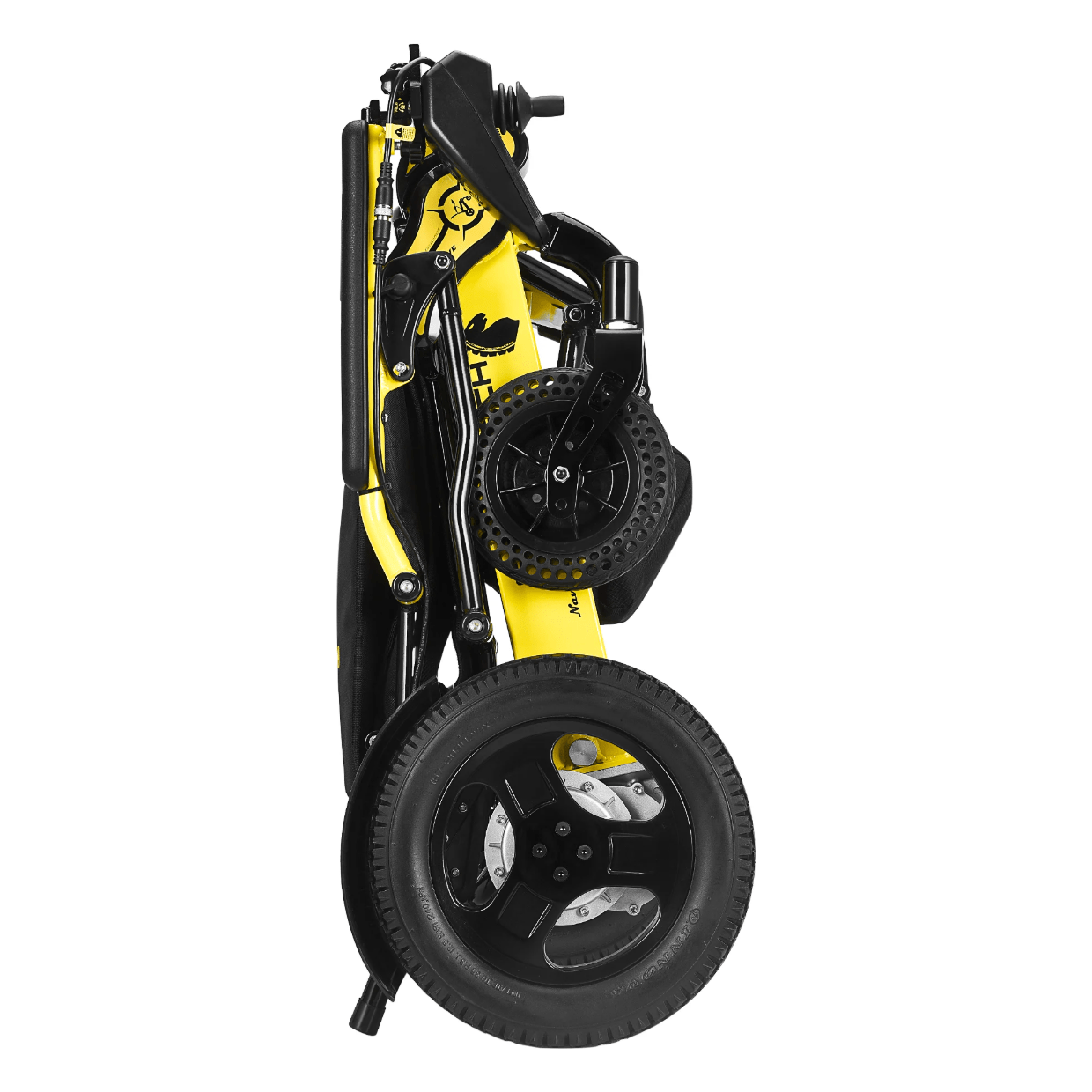

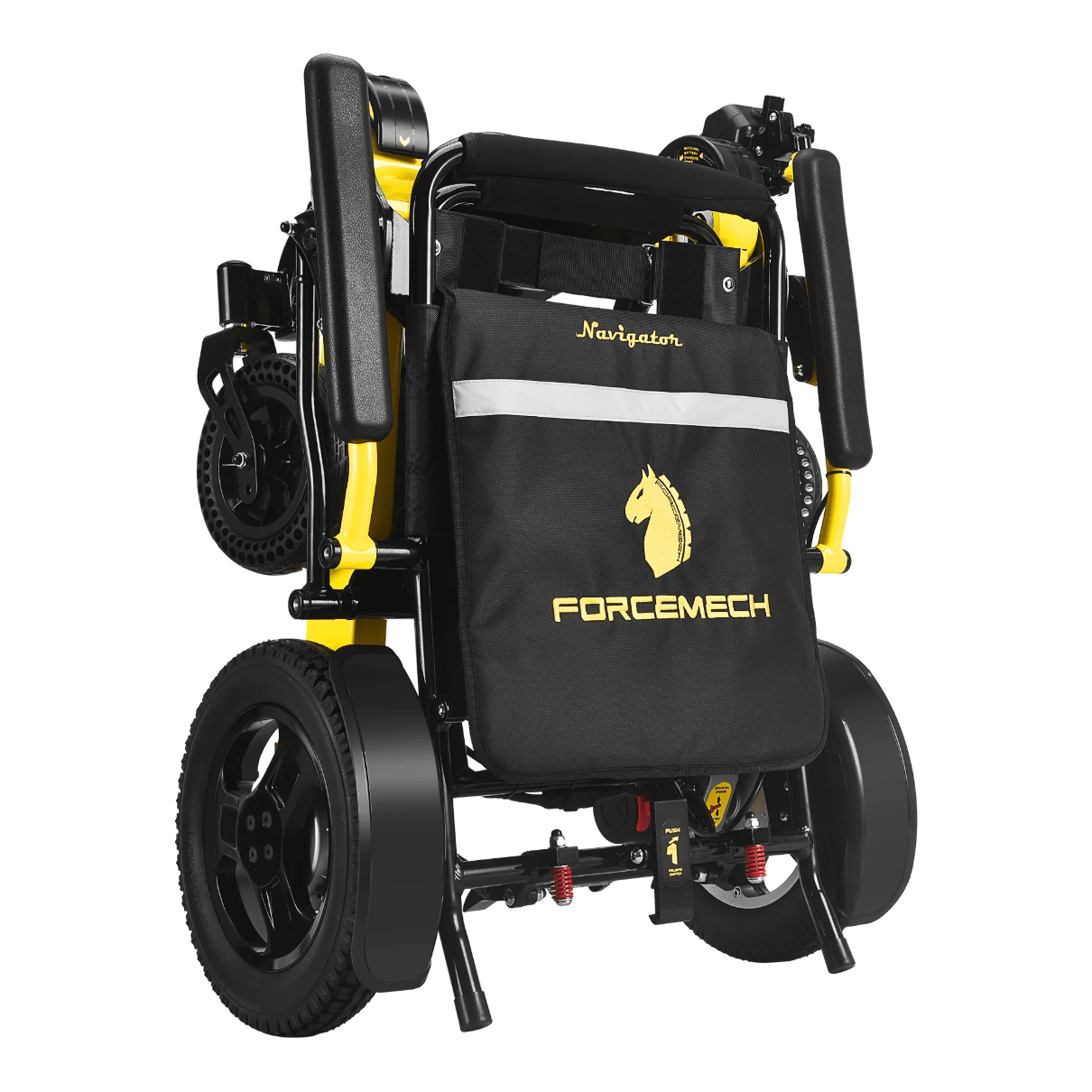

Folding Dimensions (L x W x H): 25" x 14" x 31"

Armrest Height (From Ground): 28"

Seat Height (From Ground): 18"

Seat Cushion Size (L x W x H): 18" x 18" x 2.75"

Space Between Armrests: 20"

Ground Clearance: 3.5"

Frame Material: Aluminum Allo

Wheels Material: Polyurethane Non-Flat

Size of the Front Wheels (D x W): 7" x 1.8"

Size of the Rear Wheels (D x W): 12.5" x 2.3"

Power Chair Turning Radius: 33"

Battery Type: Lithium NCM 622

Battery Capacity: 6.6 Ah (x2)

Battery Voltage Output: DC 24V

Motor Type: Brushless Eco-Drive

Motor Power: 250W

Motor Voltage Input: DC 24V

Brake System: Intelligent Electromagnetic Brake

Controller Type: Dual Core Twin Drive

Controller Power Input: AC 100–220V, 50–60Hz

Voltage Output / Current: DC 24V, 2A

Warranty:

Main Frame: 5 Years
Motors: 2 Years
Controller Unit: 1 Year
Joystick Controller: 1 Year
Batteries: 1 Year

Warranty Exclusions:

• Damage caused by exceeding the model’s specified weight capacity

• Damage from accidents, natural disasters, or improper handling

• Modifications using non-Forcemech components

• Consumables such as cushions, tires, and bearings

• Routine maintenance or adjustments

• Warranty is non-transferable and applies only to the original purchaser

• Service and labor costs, if applicable, are the responsibility of the user
