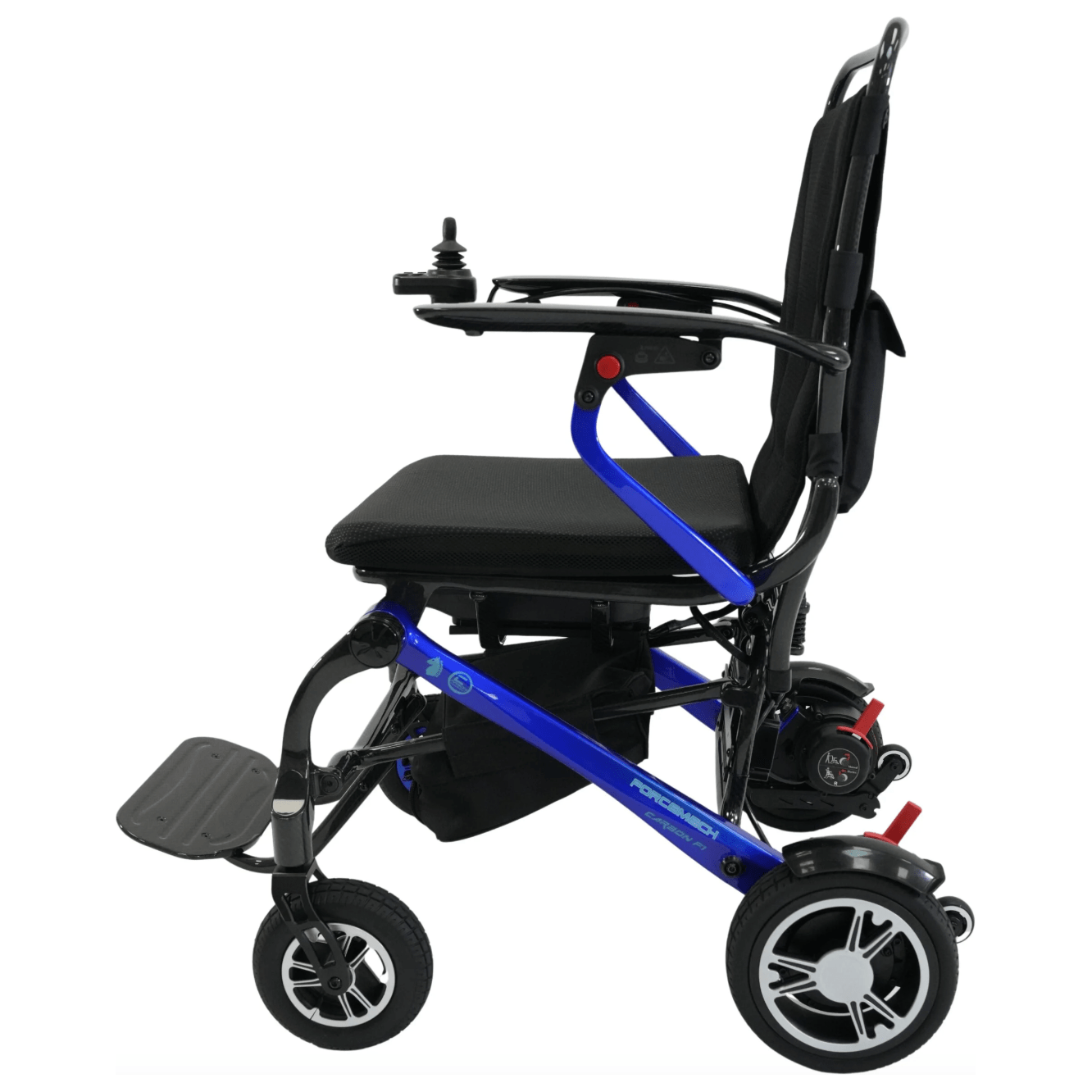

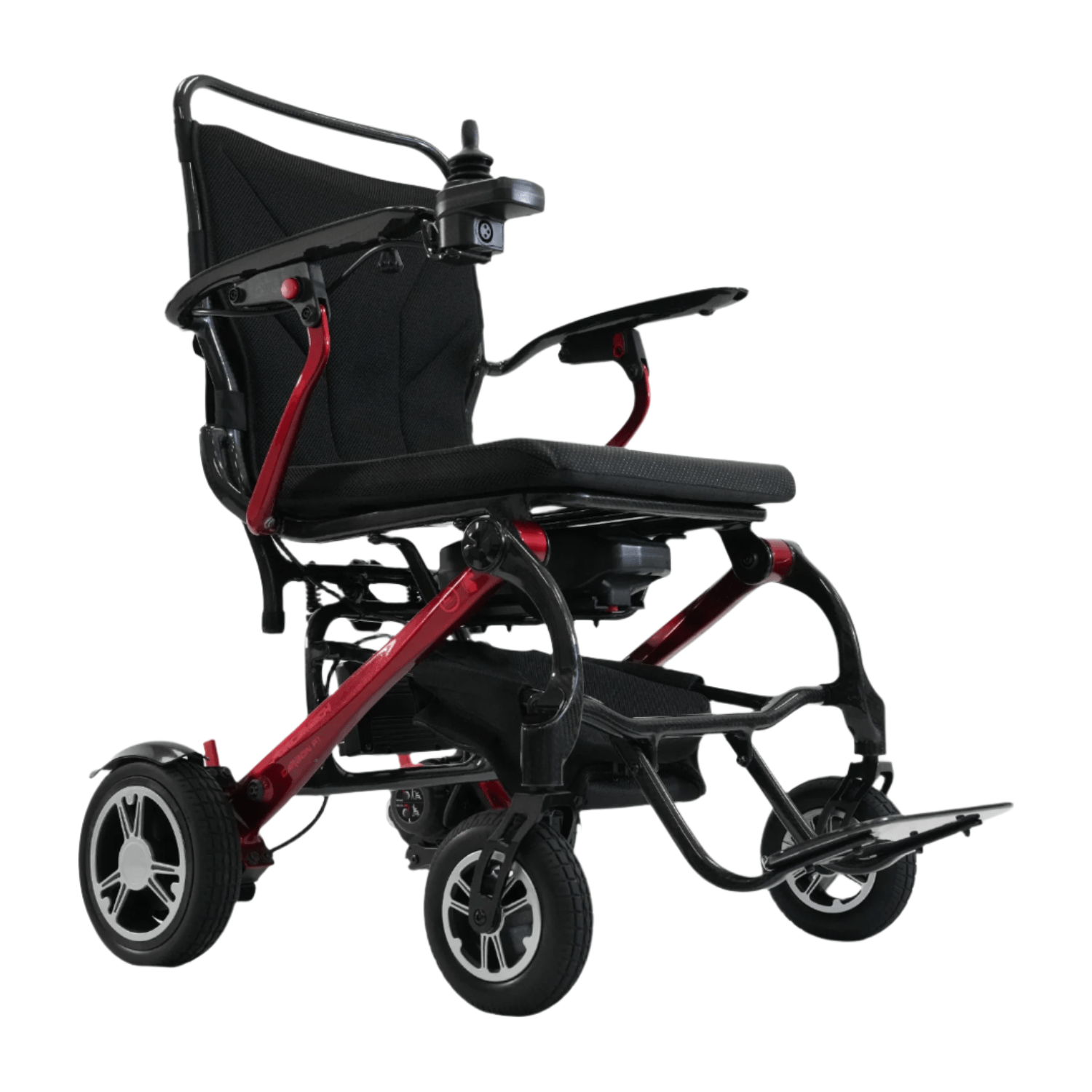

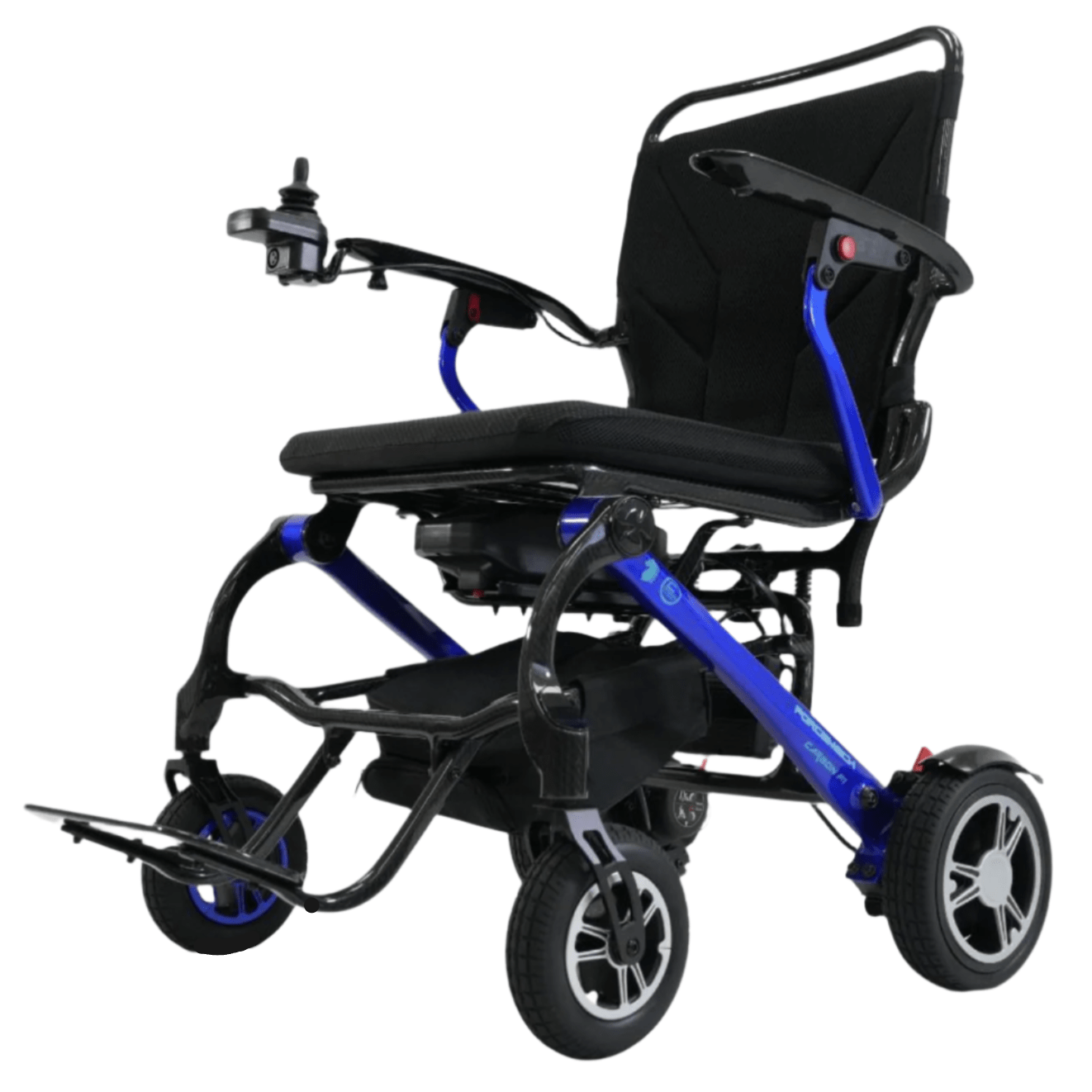

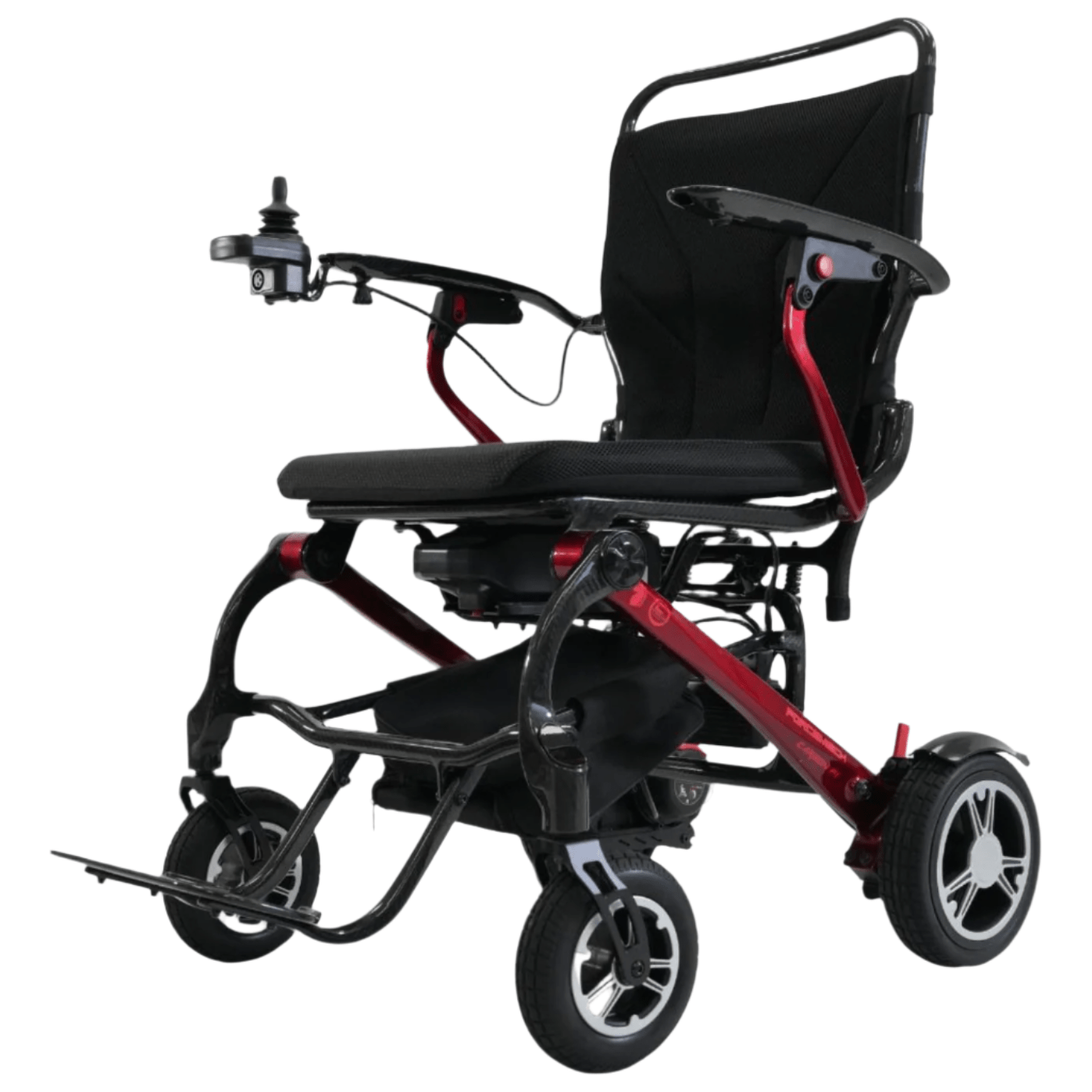

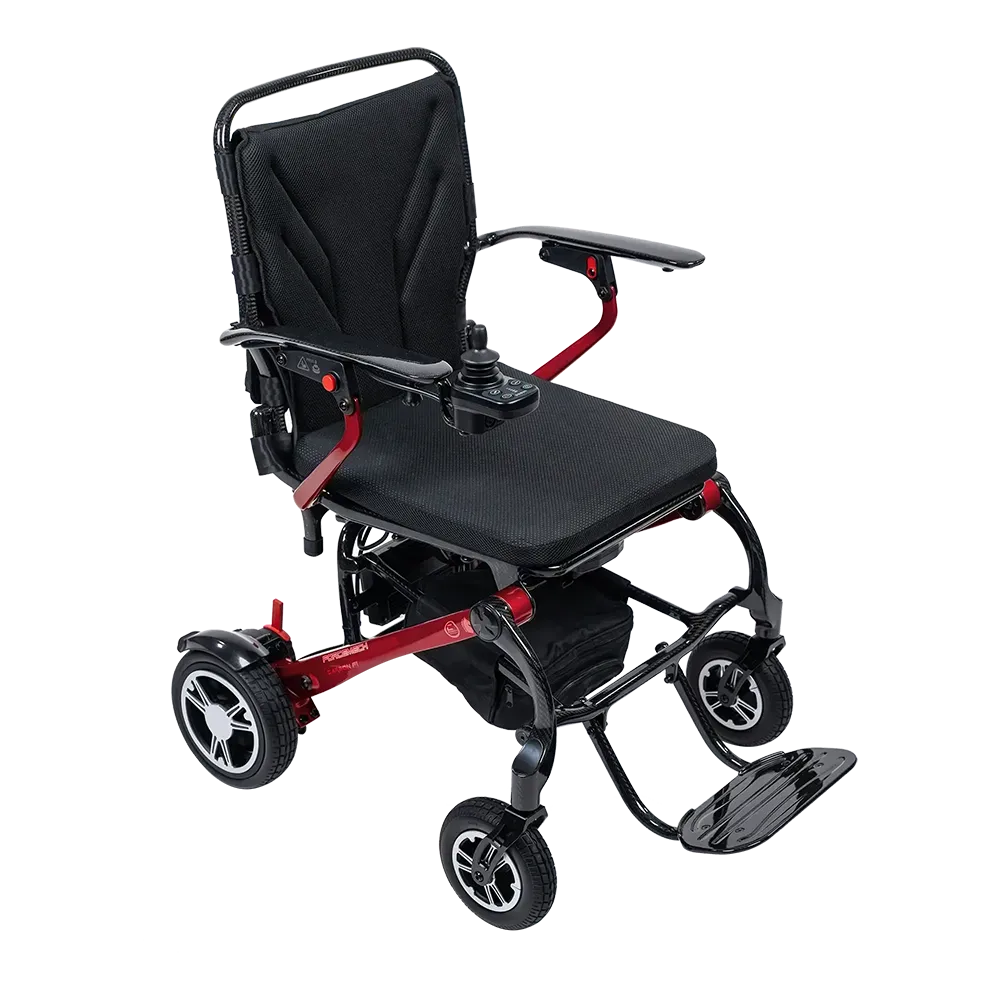

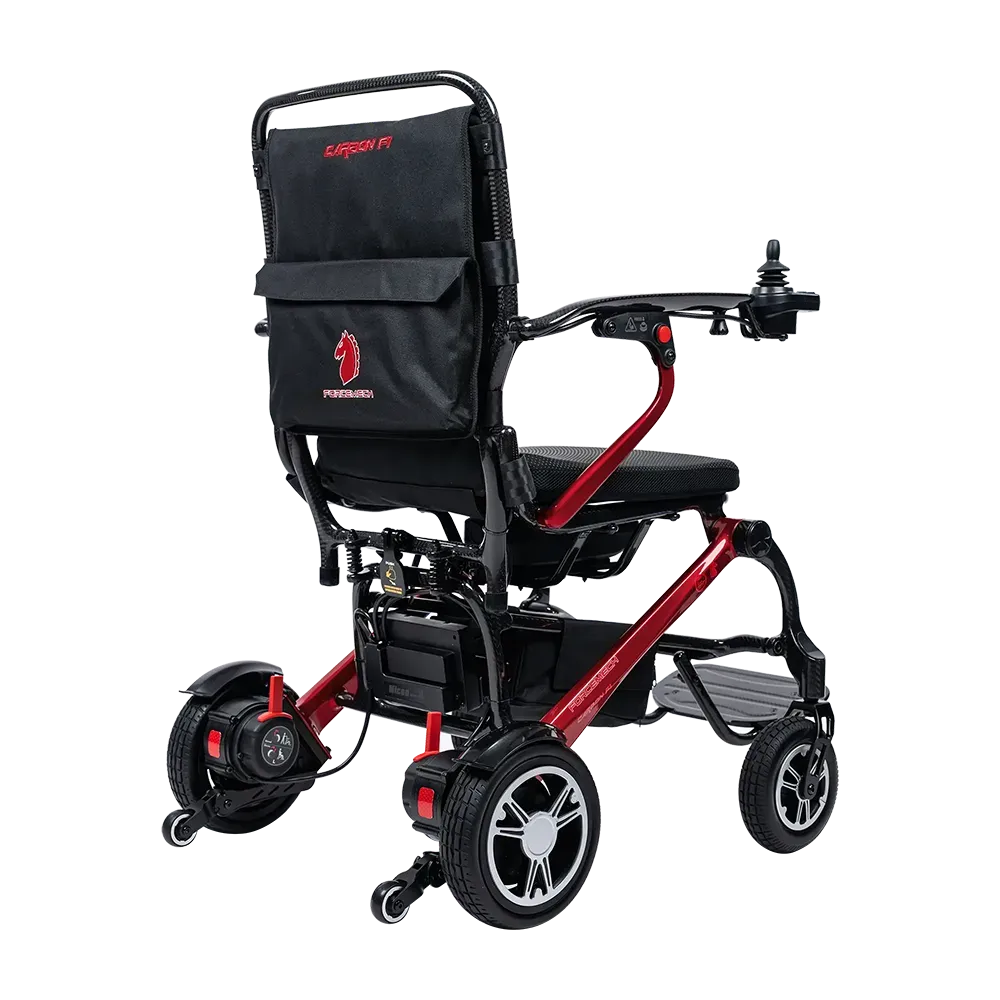

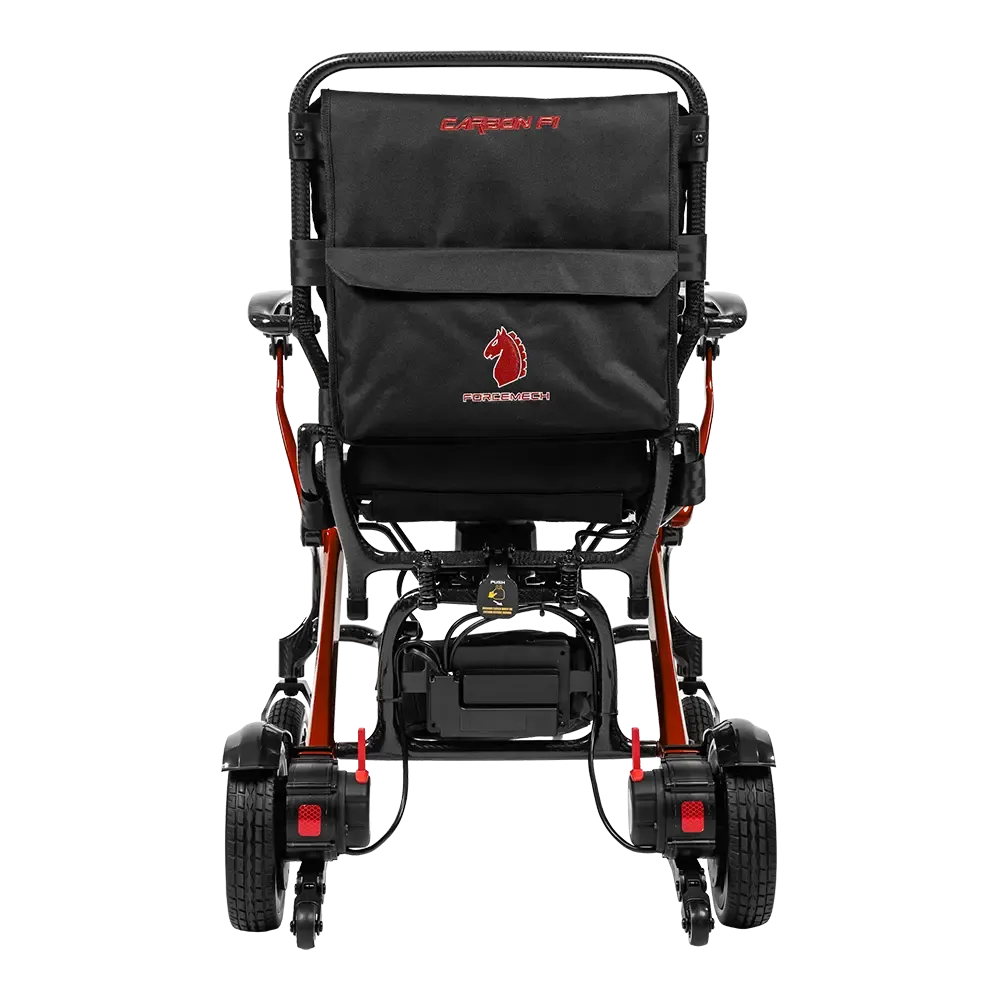

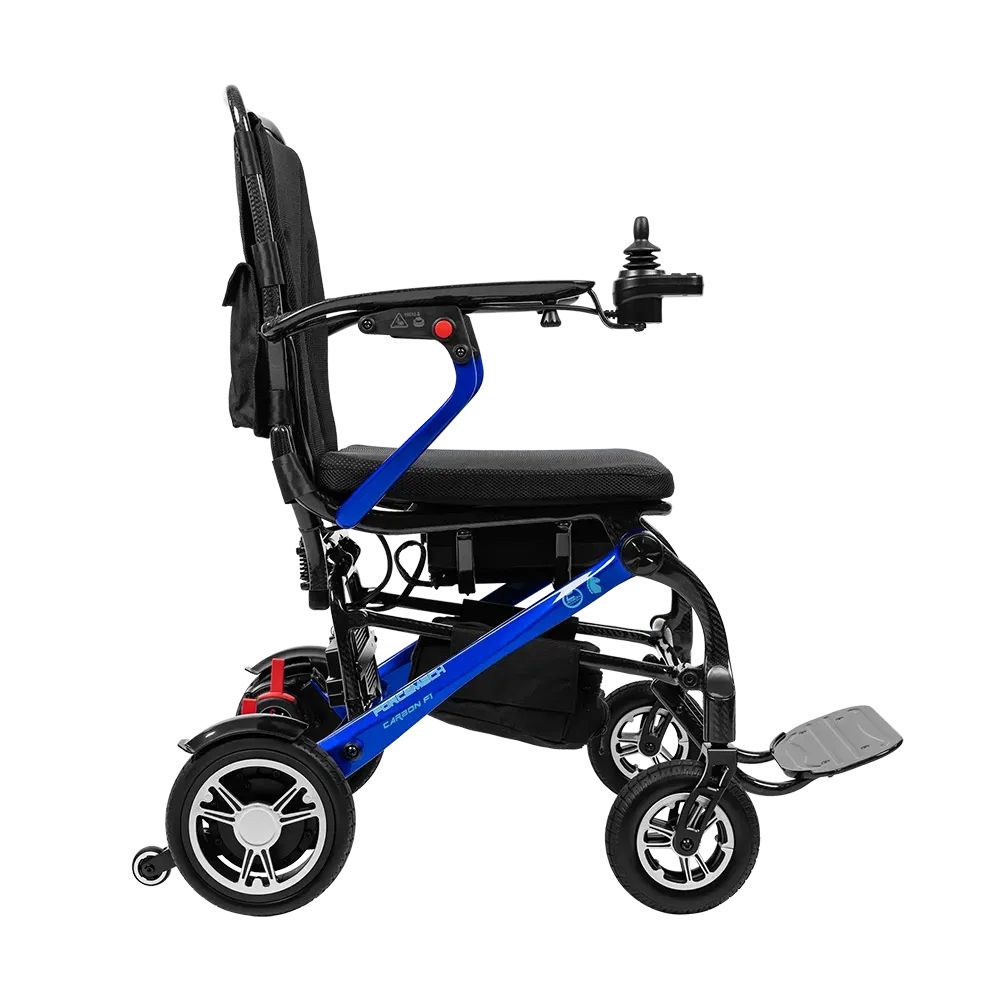

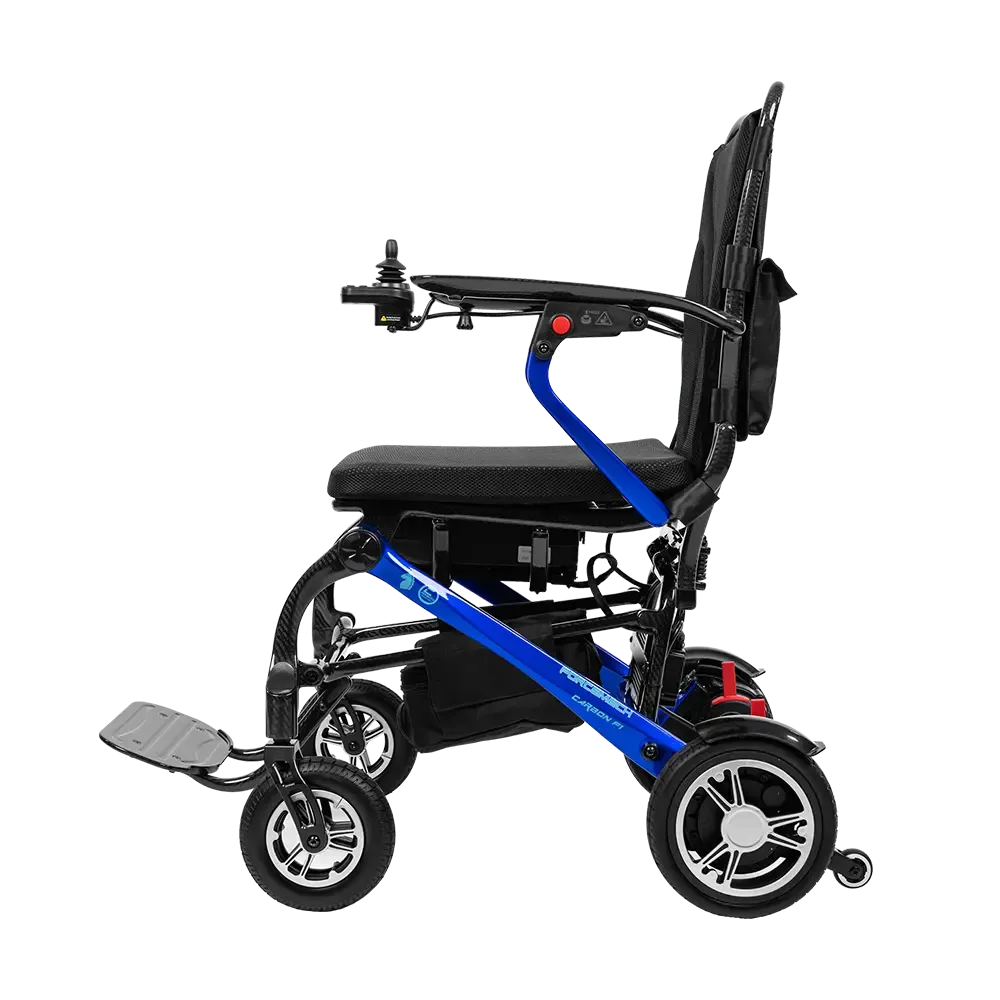

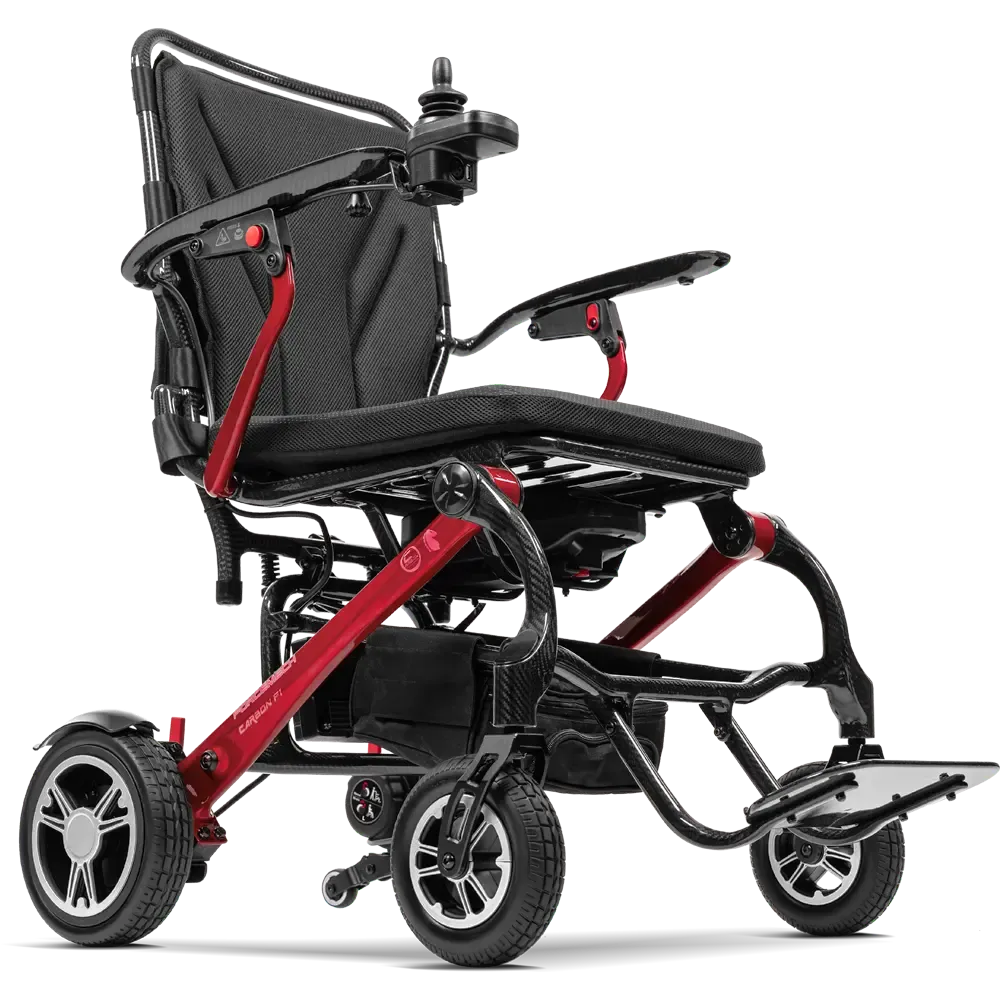

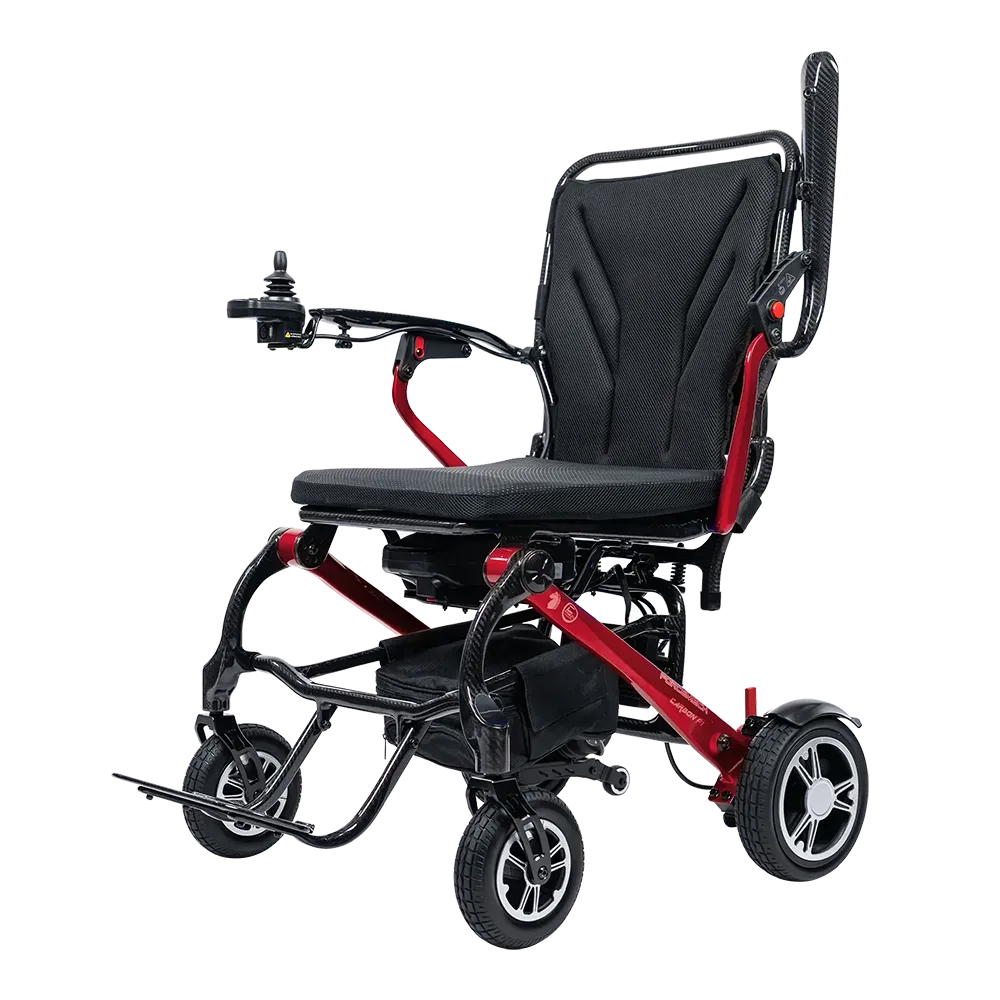

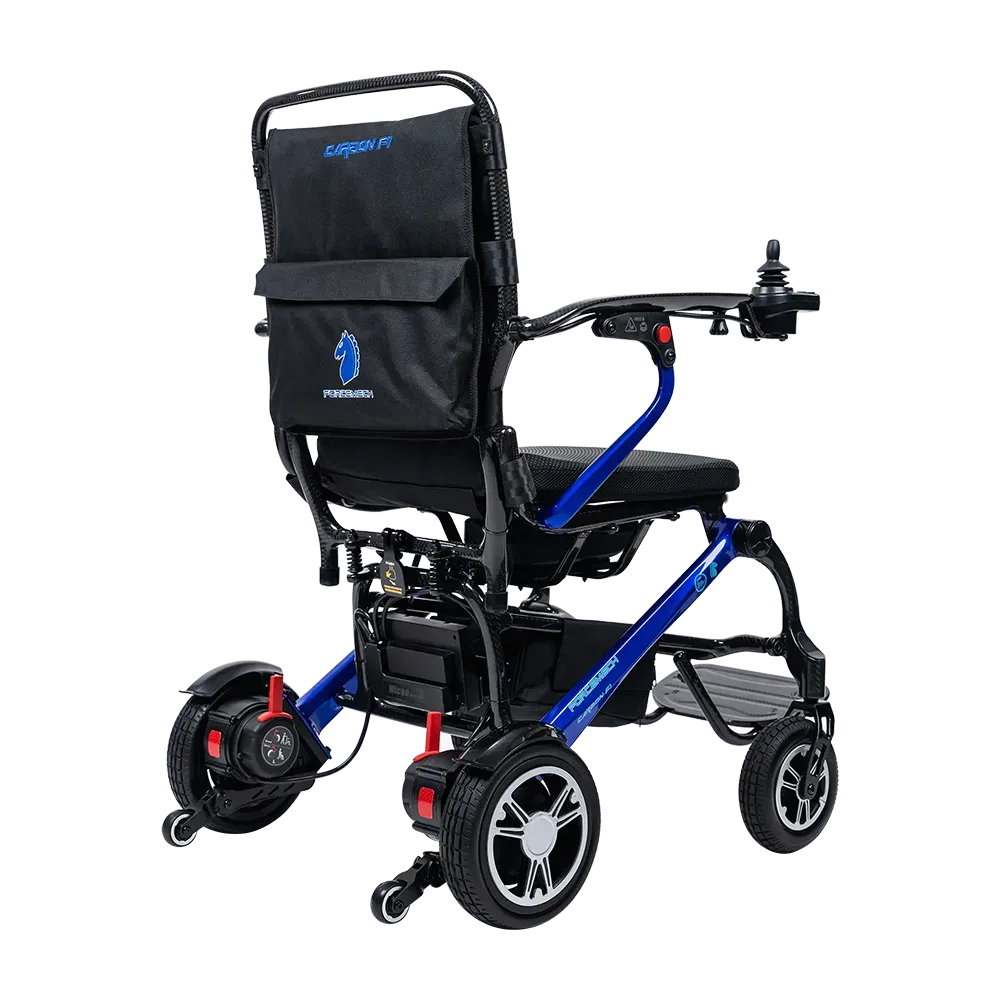

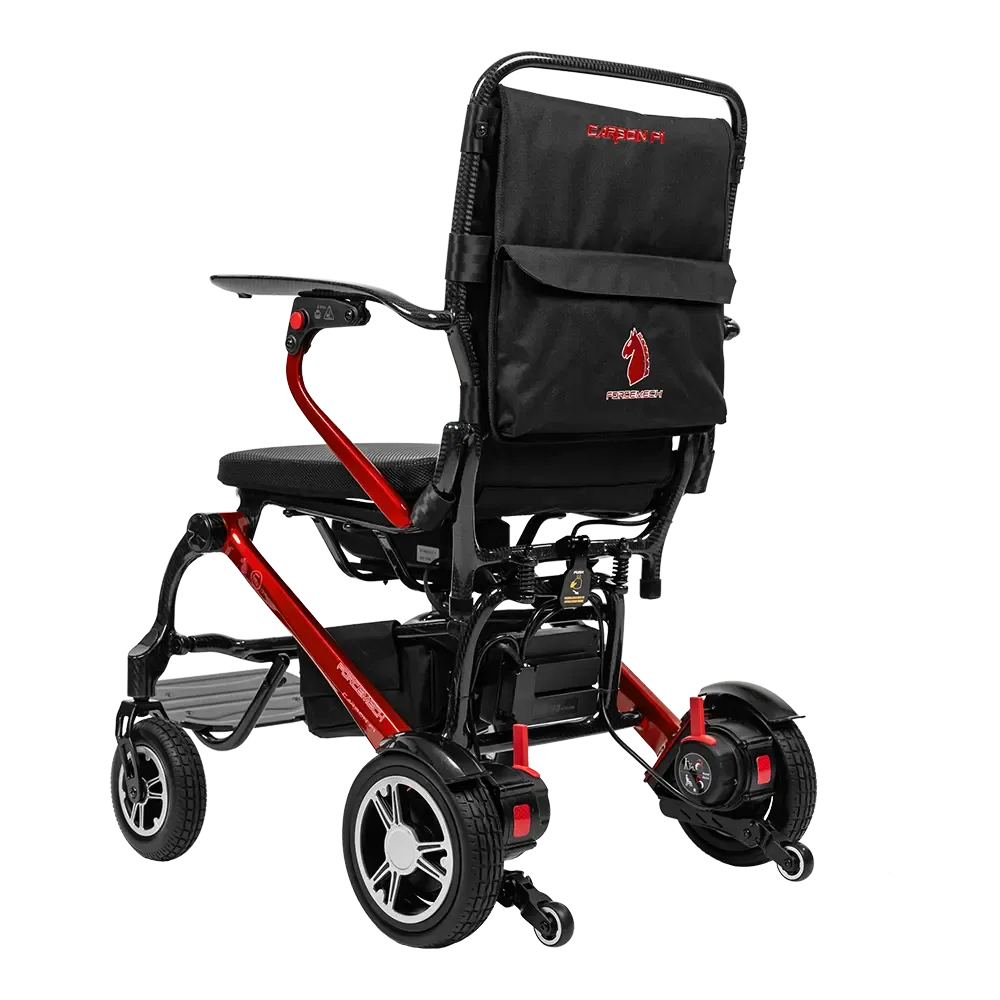

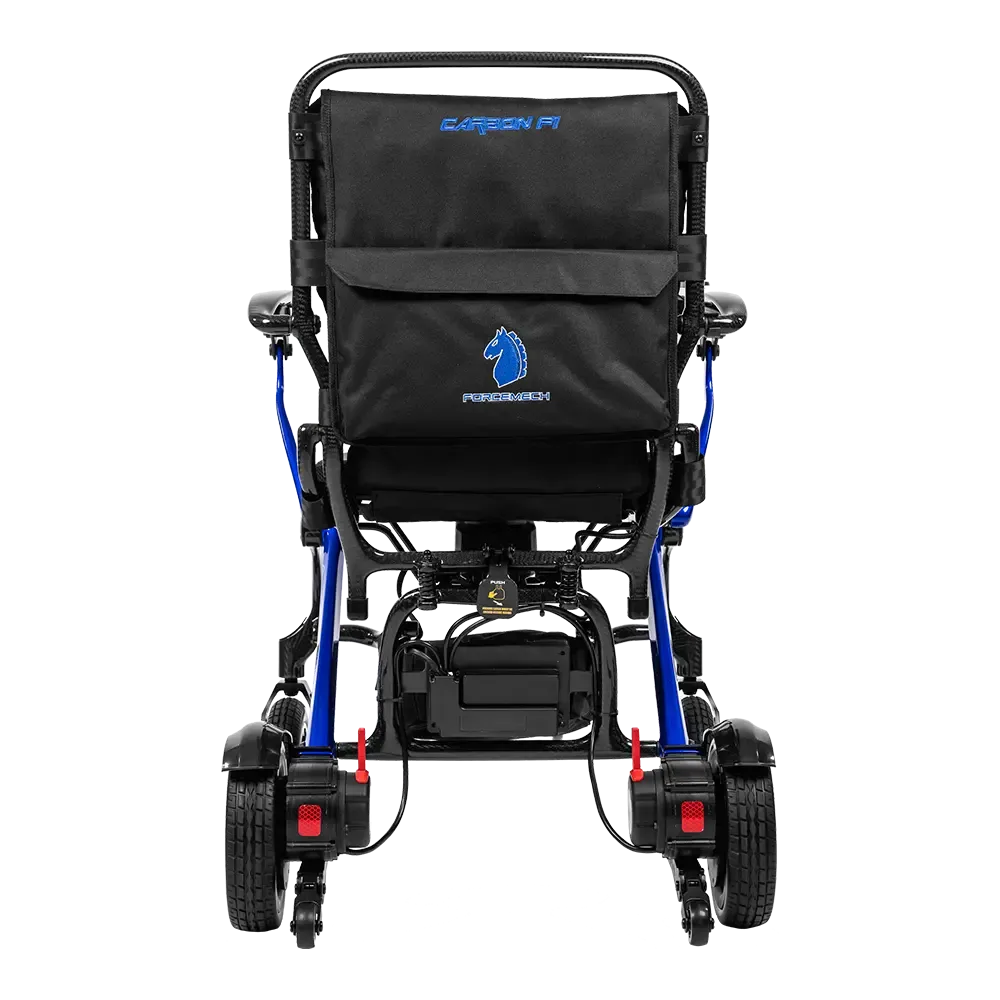

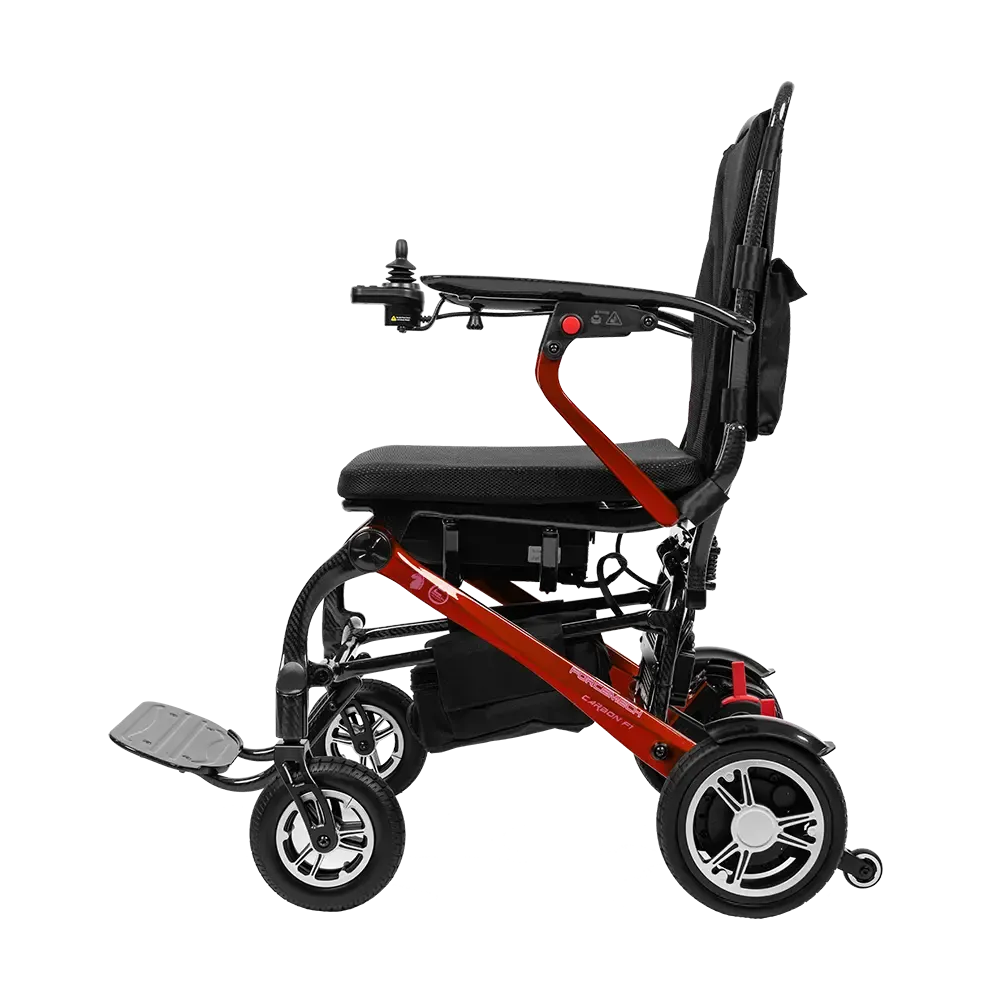

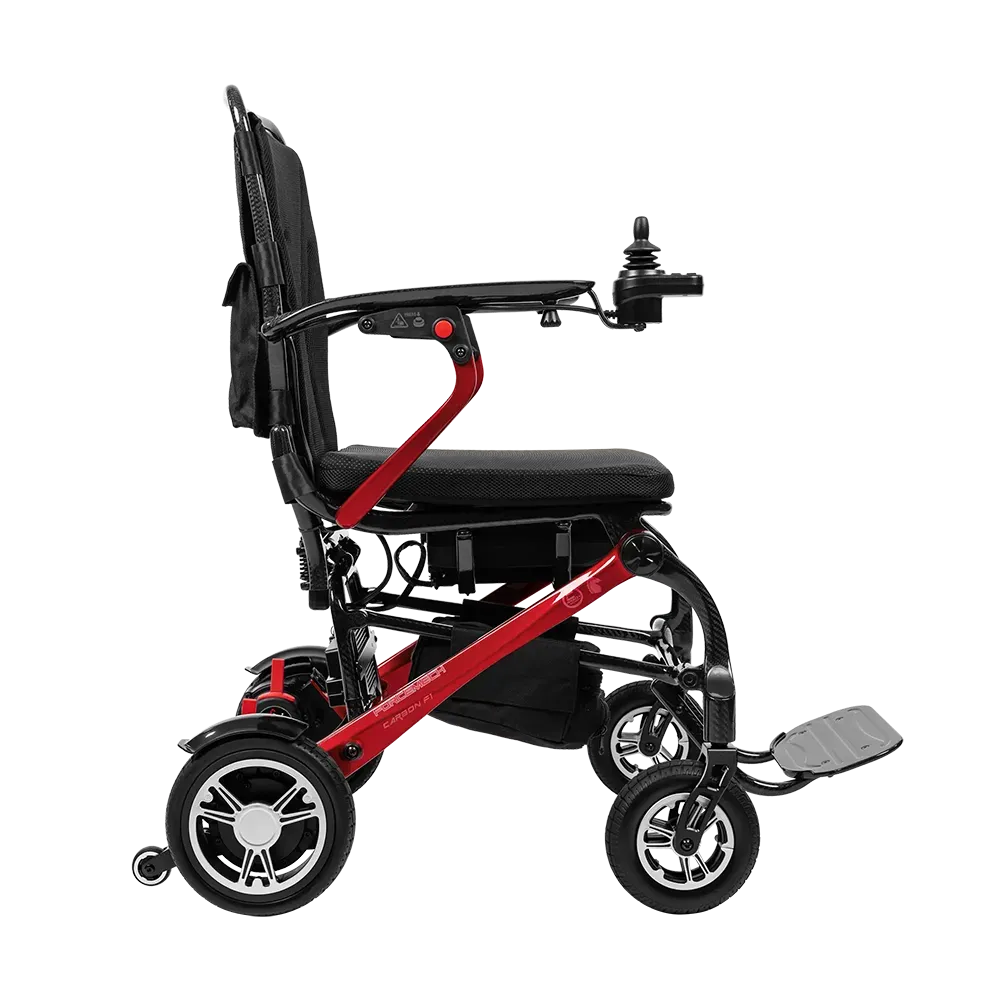

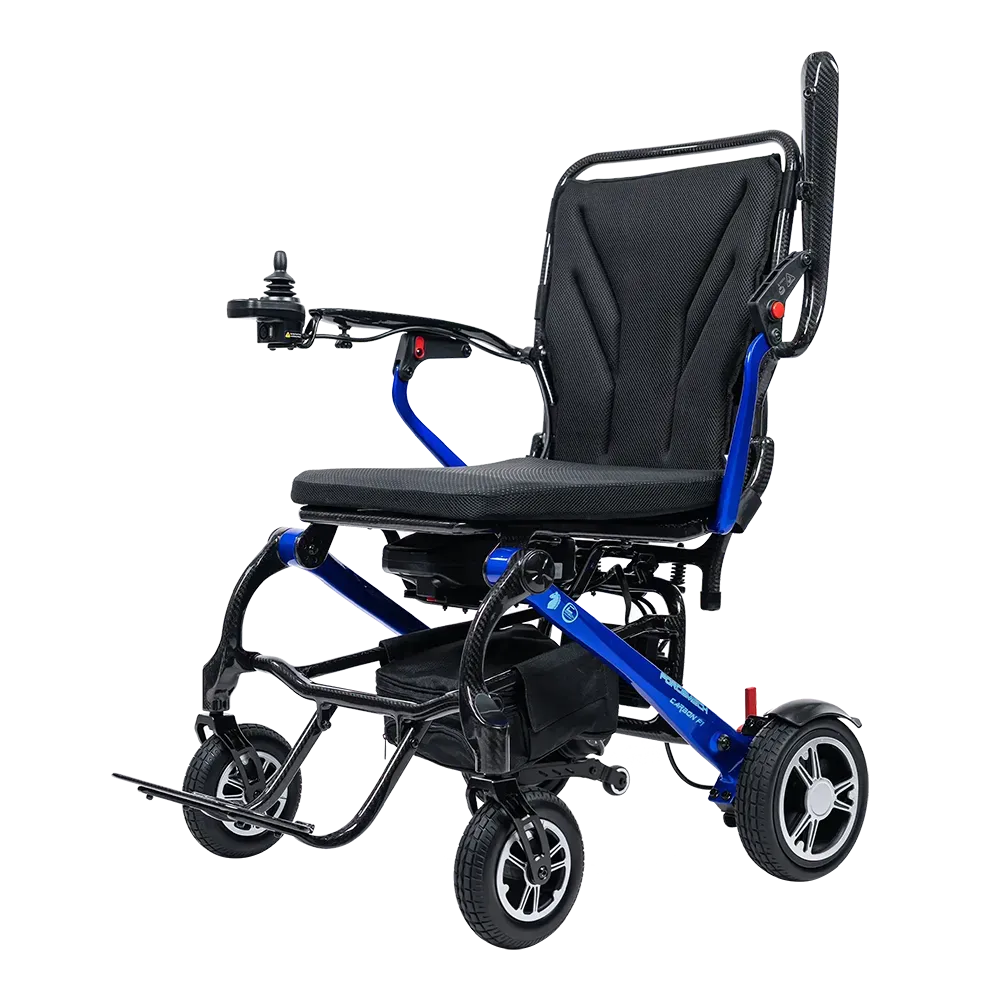

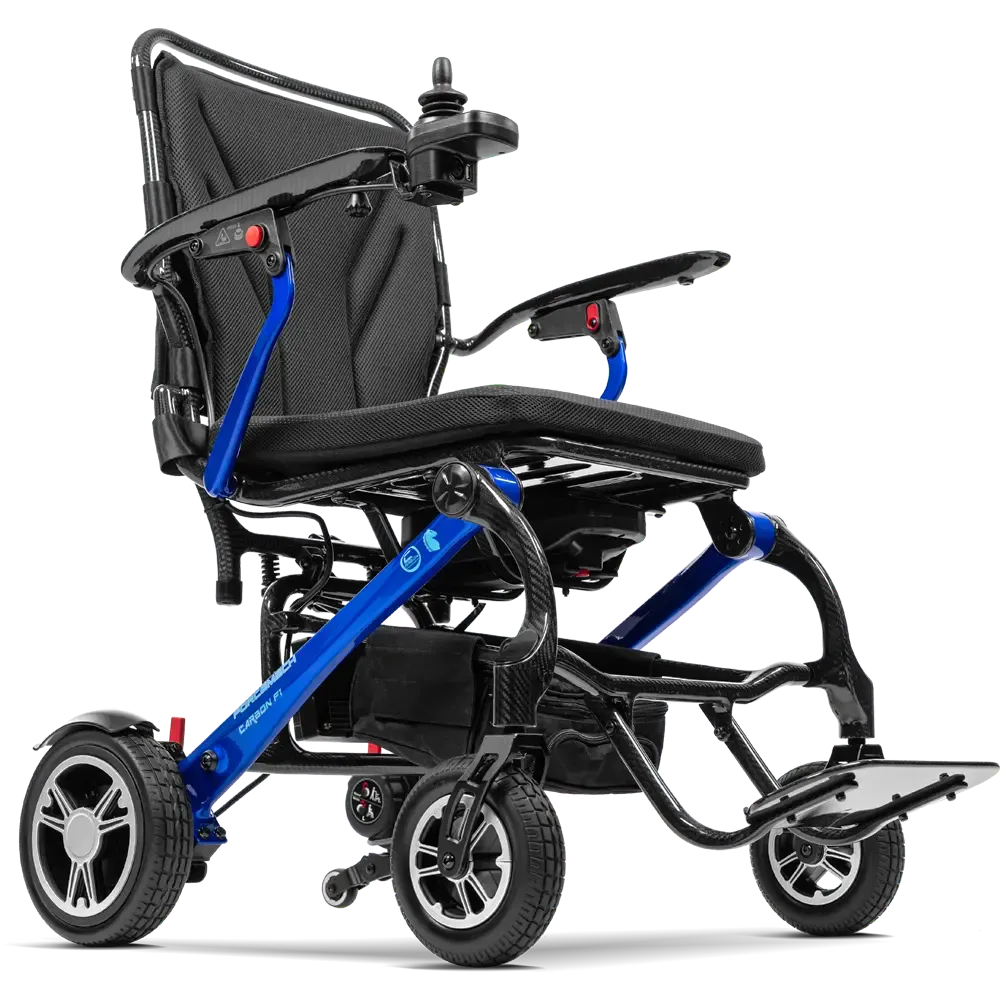

Forcemech Carbon F1 Lightweight Electric Wheelchair

About the Forcemech Carbon F1 Power Chair:

The Forcemech Carbon F1 represents the pinnacle of mobility innovation—crafted from full carbon fiber to deliver exceptional strength, portability, and design. Weighing just 33 lbs without the battery, it's one of the lightest power wheelchairs on the market, yet still supports up to 300 lbs. Whether you're traveling across town or across the globe, its 2-second folding design, dual 200W motors, and intelligent joystick control offer unmatched performance, convenience, and reliability. With luxury metallic finishes and full travel approval, the Carbon F1 is built for those who demand more from their mobility equipment.

Key Features:

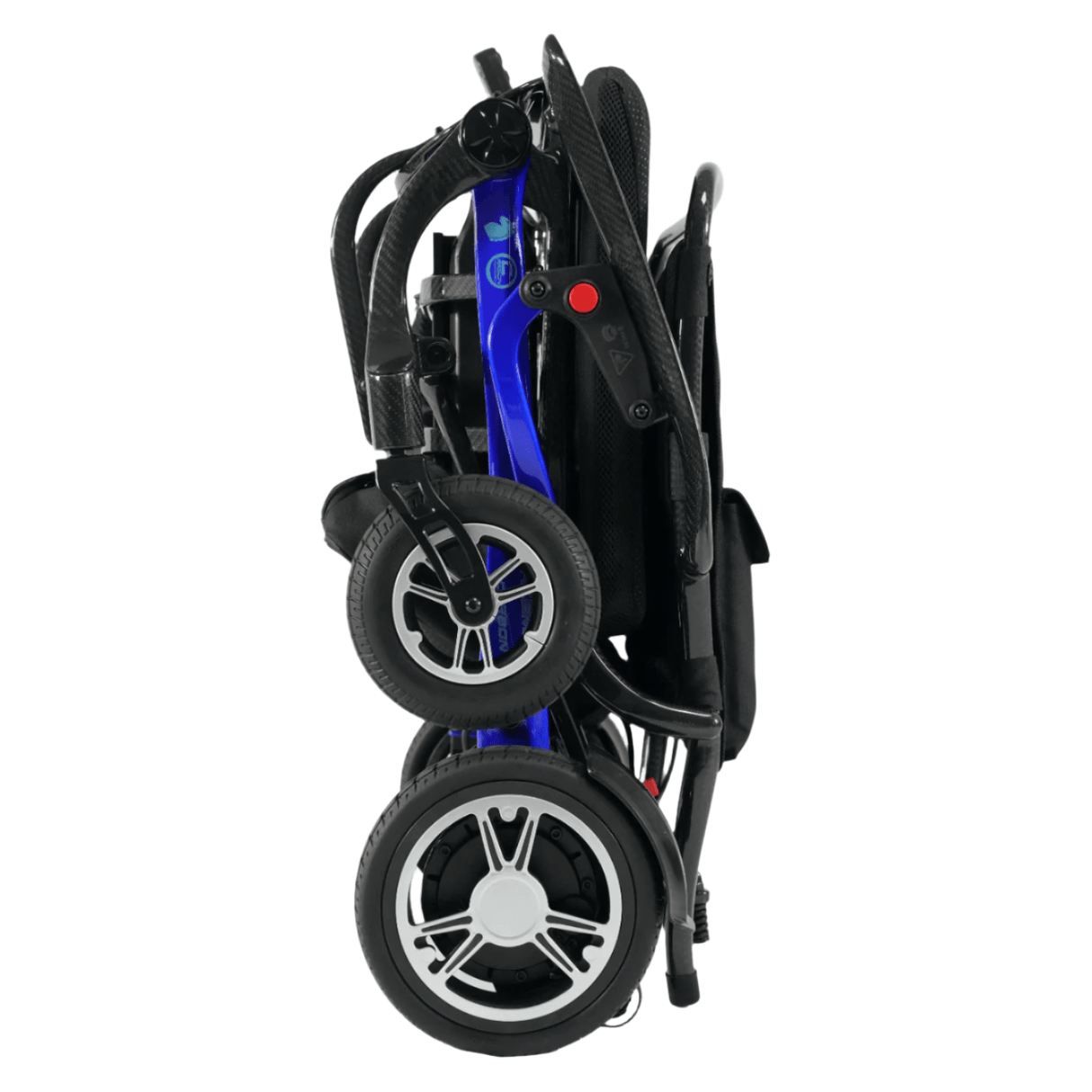

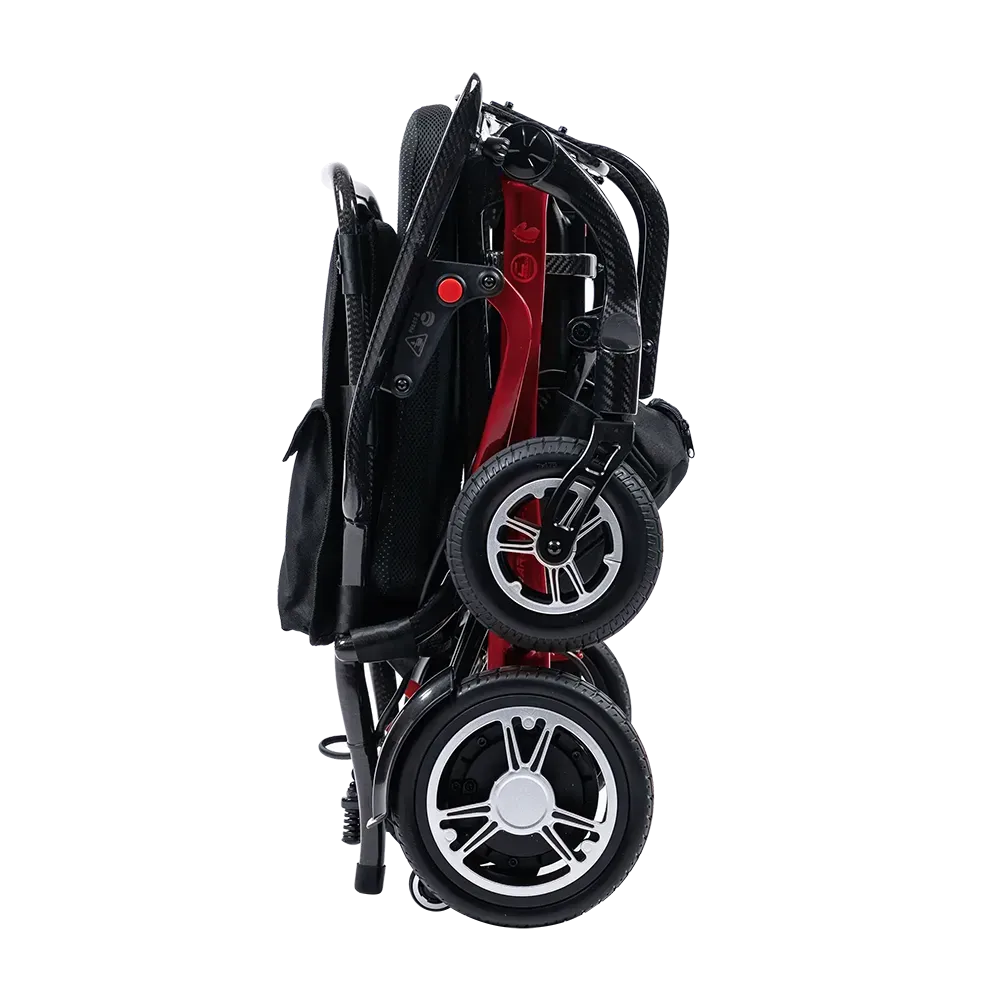

• Split-second folding & unfolding for maximum portability
• Full carbon fiber frame weighing only 33 lbs
• Dual 200W motors for smooth, powerful movement
• All-directional joystick with intelligent electromagnetic braking
• FAA airline and cruise ship approved
• Ultra-compact folding for tight spaces


Specifications:

Overall Dimensions (L×W×H): 27" x 24" x 38"

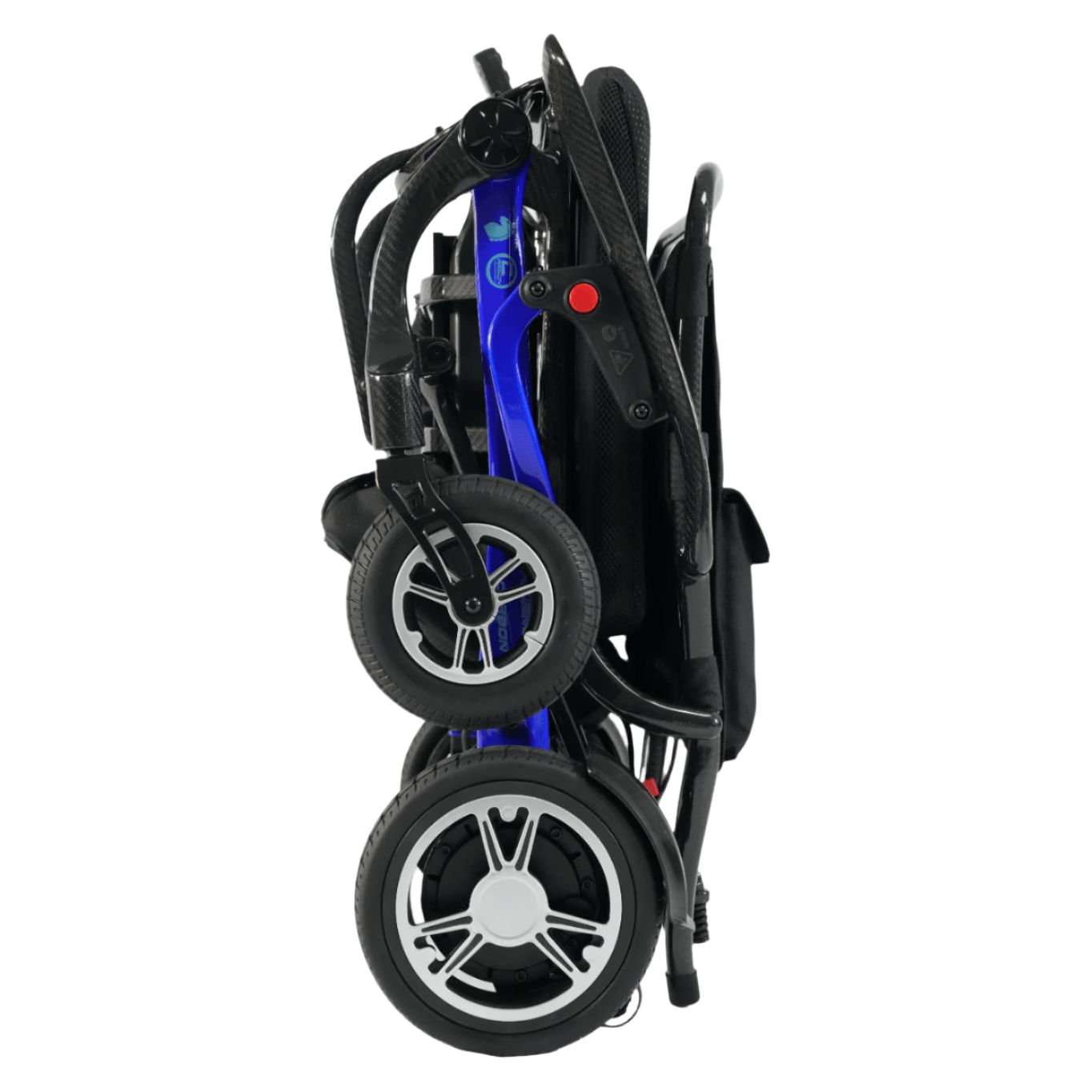

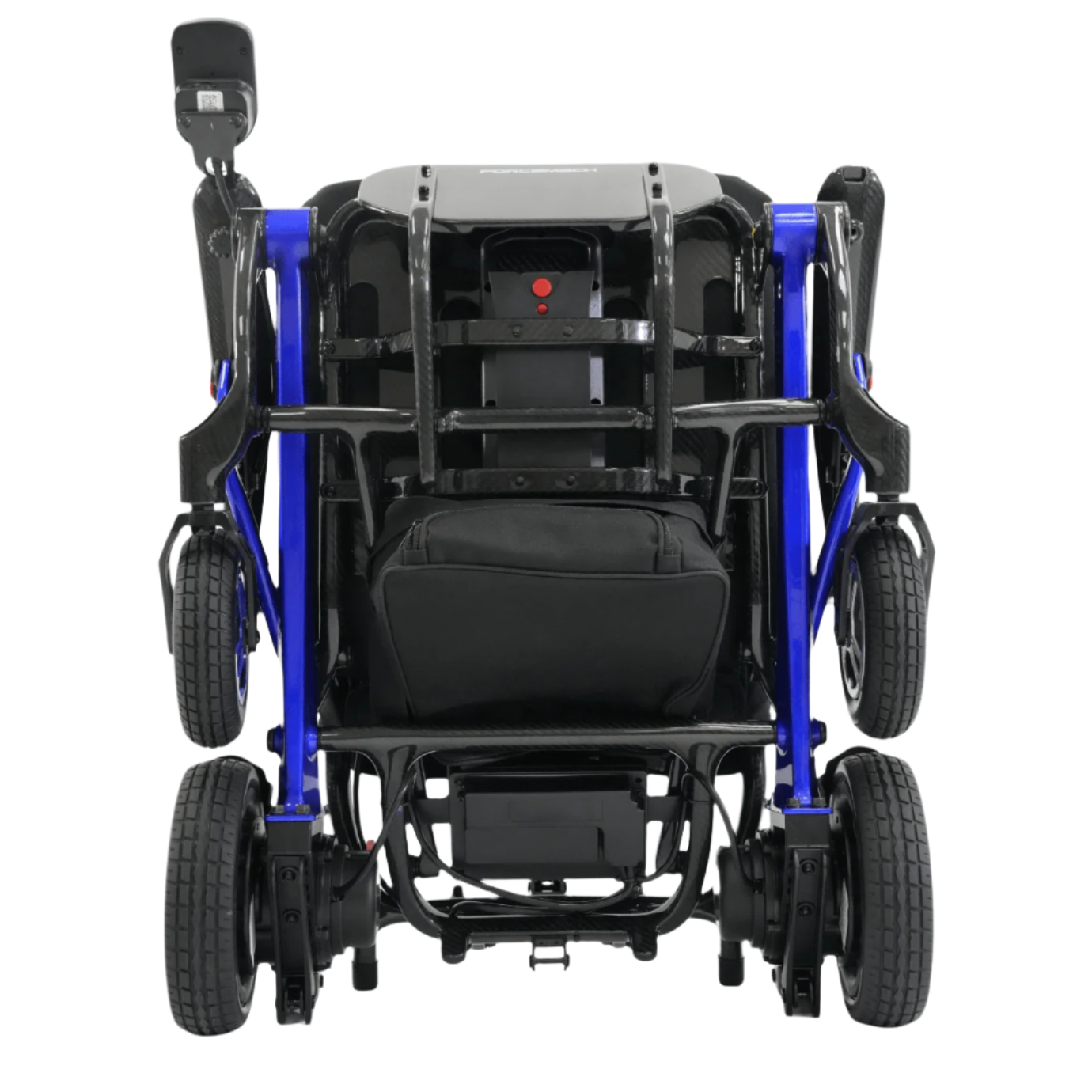

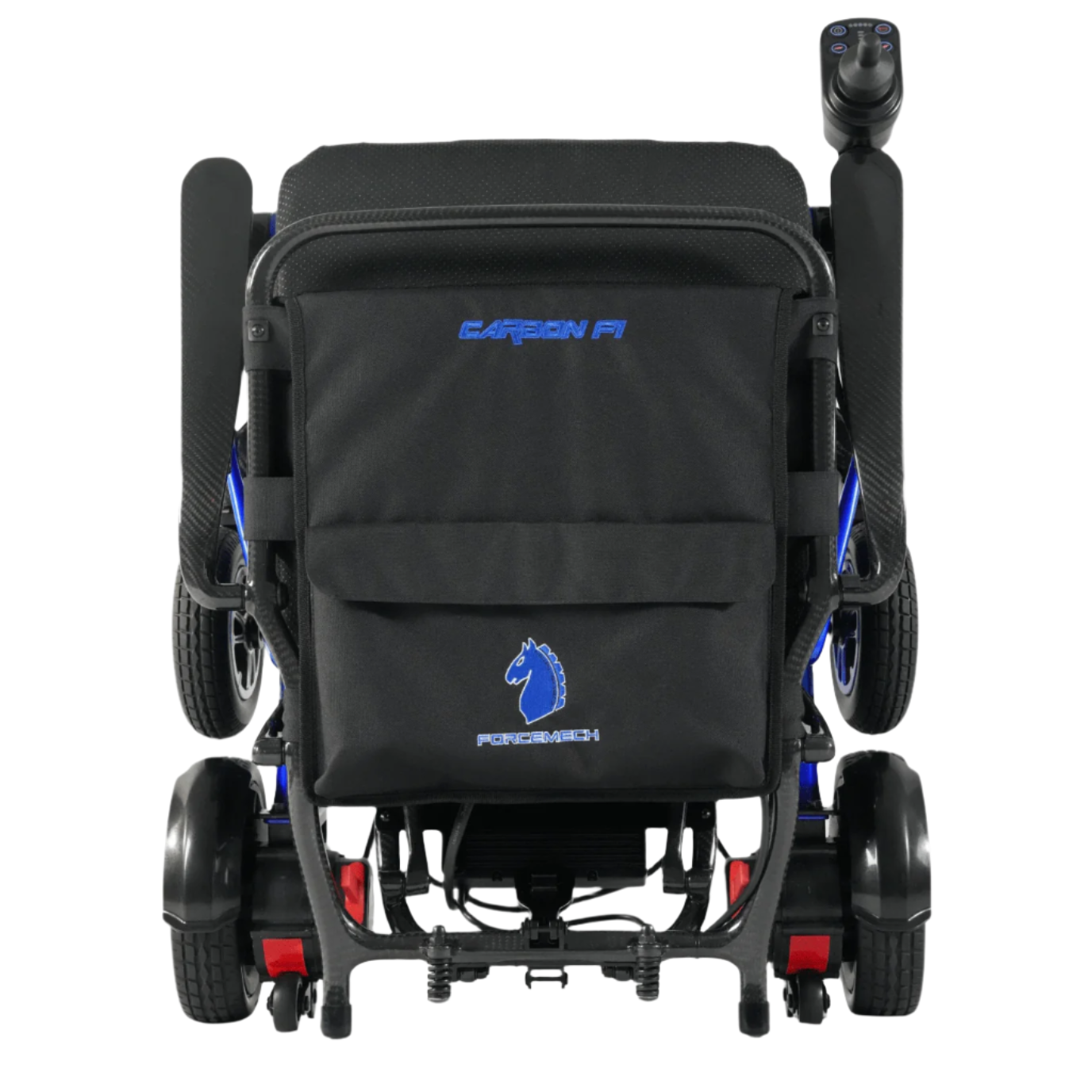

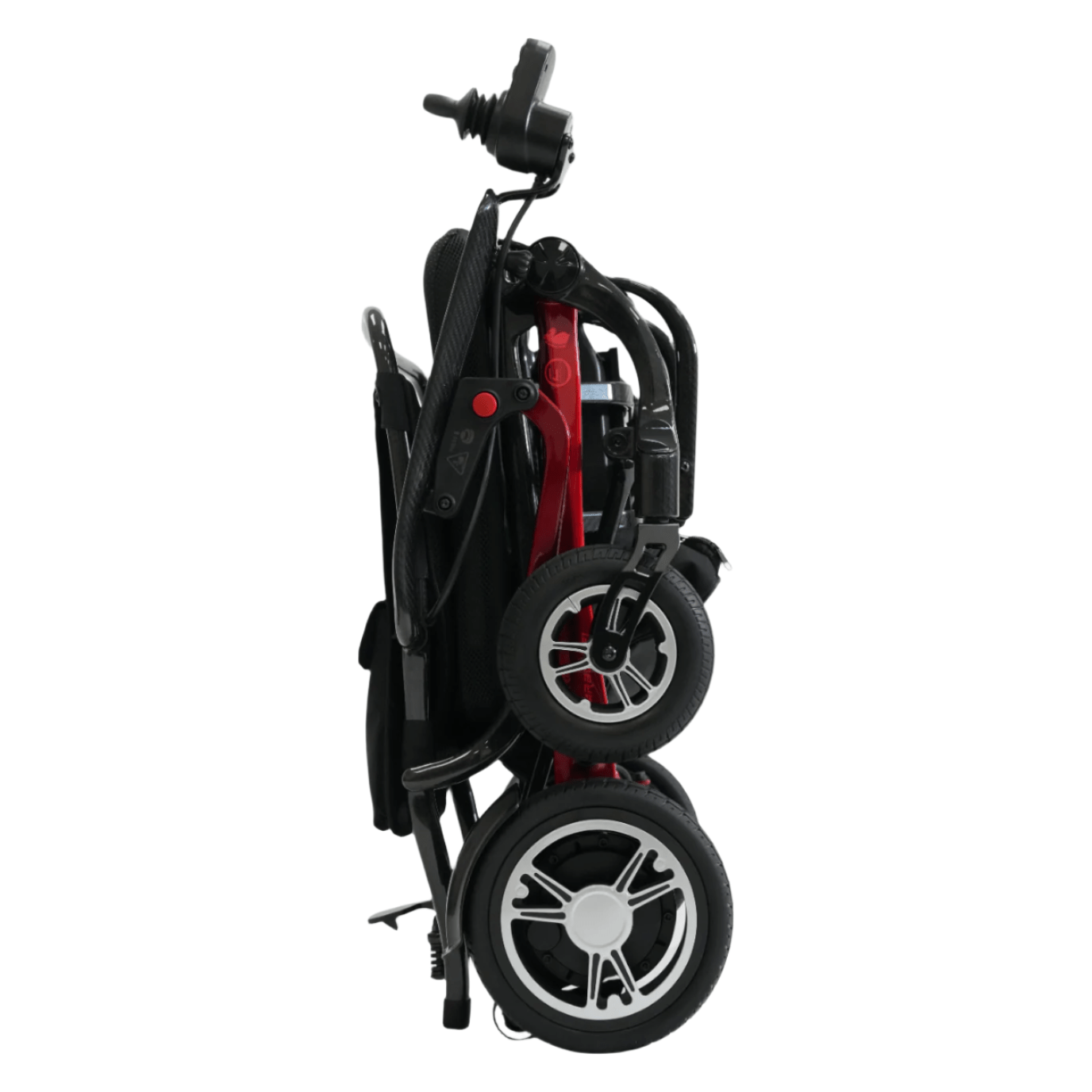

Folded Dimensions (L×W×H): 28" x 24" x 13"
Total Weight (with battery): 35 lbs
Battery Weight: 2 lbs
Weight (without battery): 33 lbs
Turning Radius: 24"
Ground Clearance: 2"
Maximum Climbing Degree: 9°
Maximum Speed: 4 mph
Minimum Braking Distance from Max Speed: ≤ 39"
Driving Distance (Per Charge): 10 miles
Seat Depth: 17"
Seat Cushion Width: 16.5"
Space Between Armrests: 20"
Seat Surface Height from Ground: 20"
Backrest Angle: 13°
Backrest Height: 16.5"
Distance from Footrest to Seat: 17"
Distance from Footrest to Surface: 4.3"
Footrest Length: 6"
Armrest Height from Seat: 9"
Armrest Length: 14.5"
Armrest Width: 2.4"
Motor: 24V / 200W × 2
Battery Specification: 24V / 10Ah Lithium
Controller Max Output Current: 35A
Charger Max Output Current: 2A
Caster Wheel Diameter: 7"
Drive Wheel Diameter: 8.5"

Warranty:

Main Frame: 5 Years
Motors: 2 Years
Controller Unit: 1 Year
Joystick Controller: 1 Year
Batteries: 1 Year

Warranty Exclusions:

• Damage caused by exceeding the model’s specified weight capacity

• Damage from accidents, natural disasters, or improper handling

• Modifications using non-Forcemech components

• Consumables such as cushions, tires, and bearings

• Routine maintenance or adjustments

• Warranty is non-transferable and applies only to the original purchaser

• Service and labor costs, if applicable, are the responsibility of the user

Resources:

User Manual Link

Video:
