Forcemech Carbon F1 Lightweight Electric Wheelchair

Forcemech Carbon F1 Power Chair

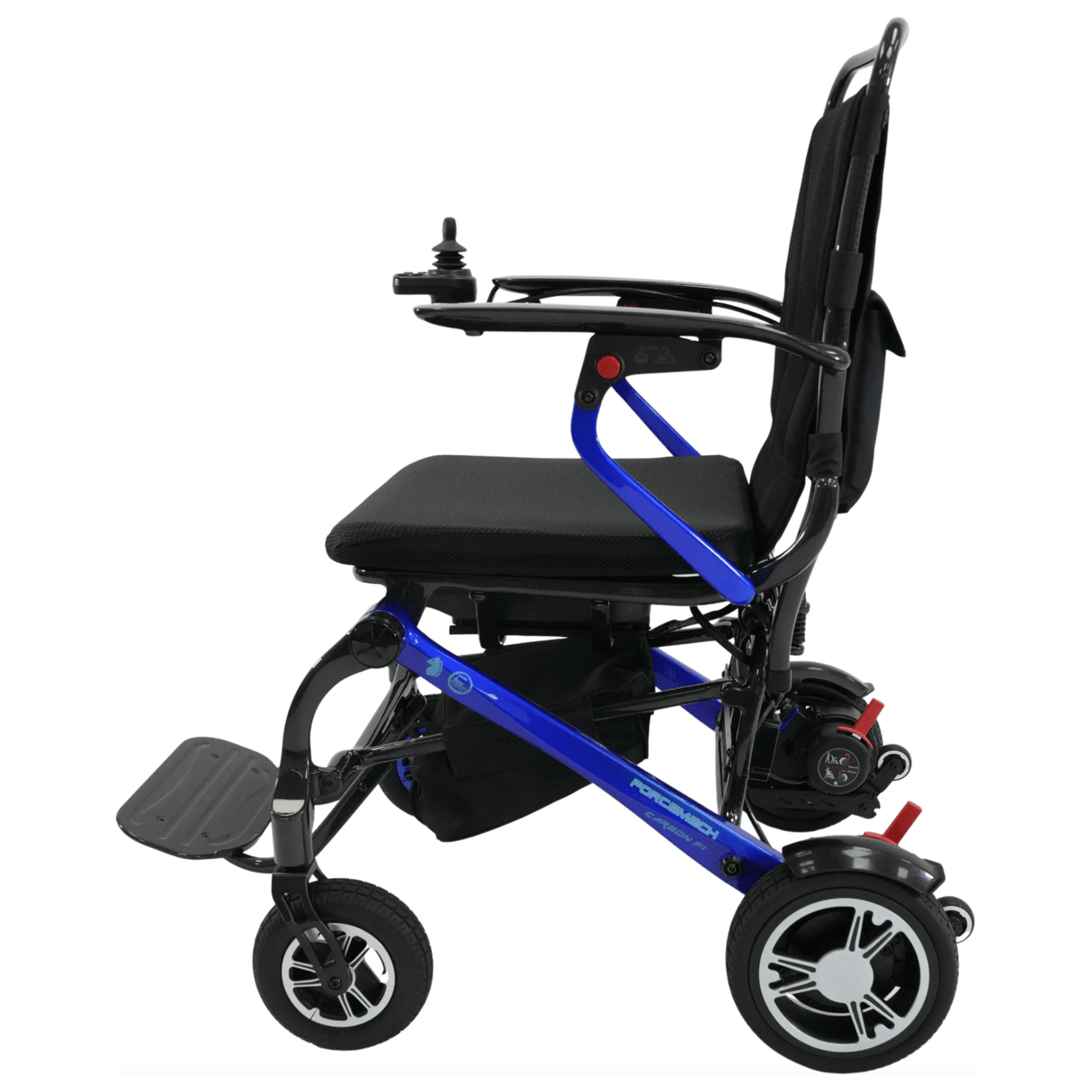

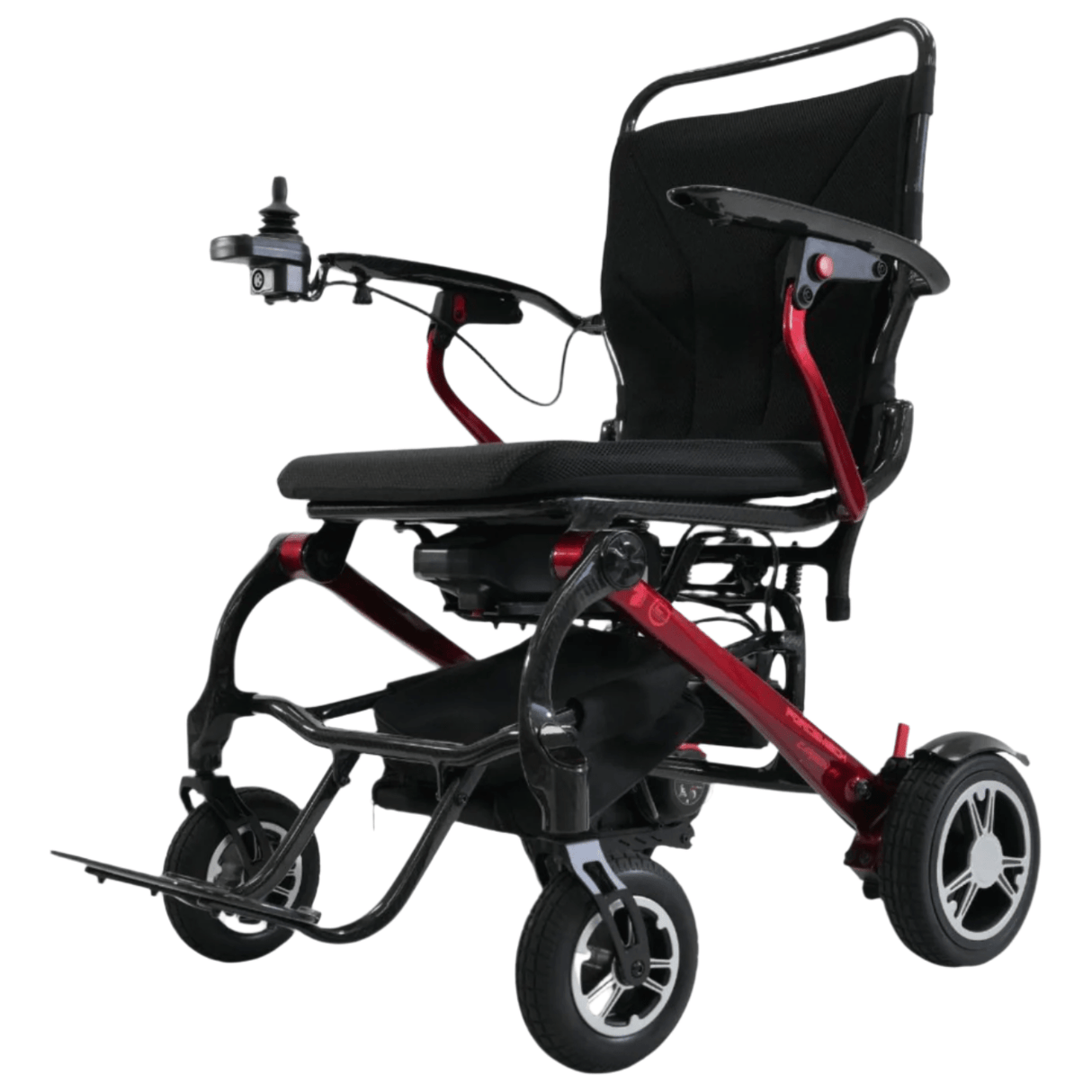

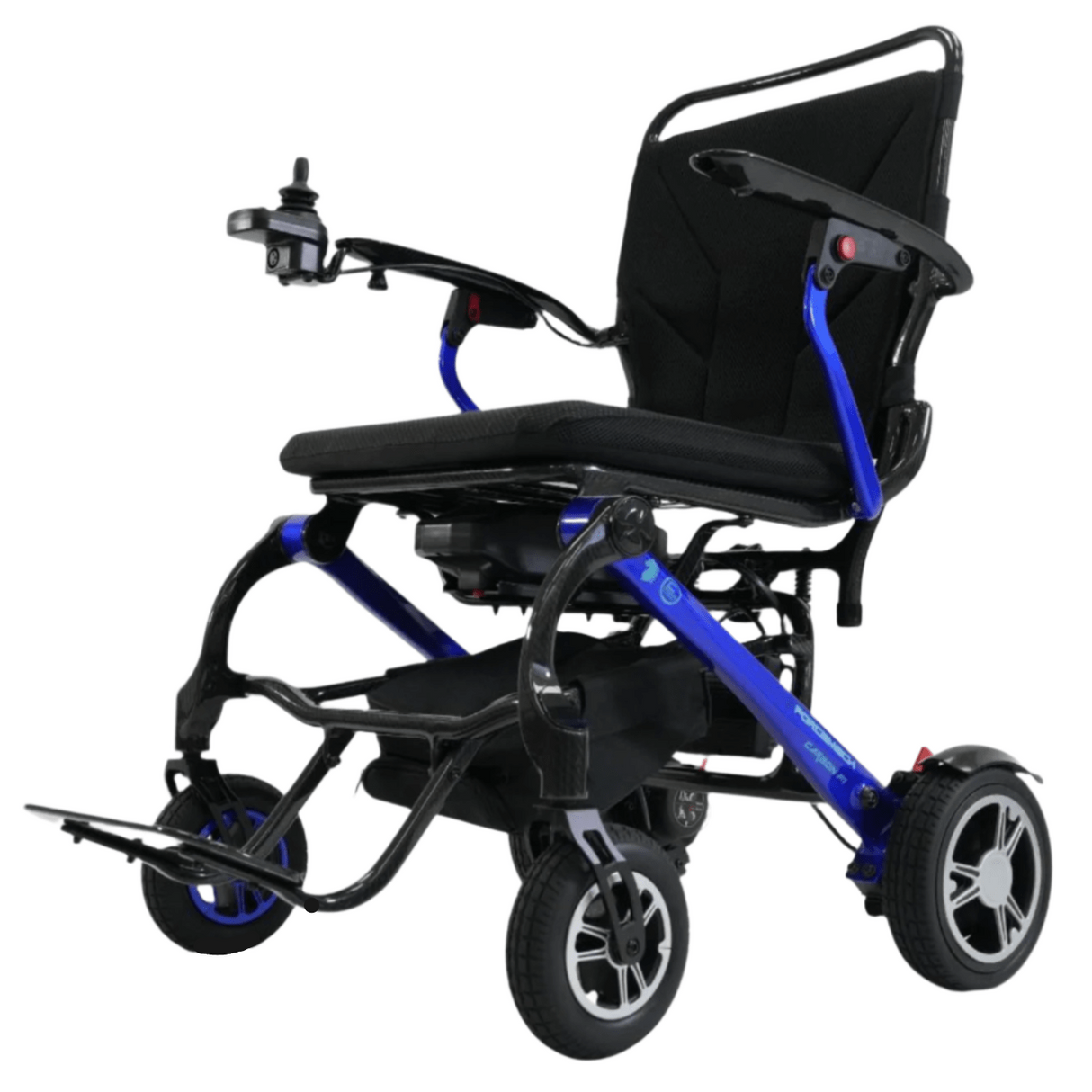

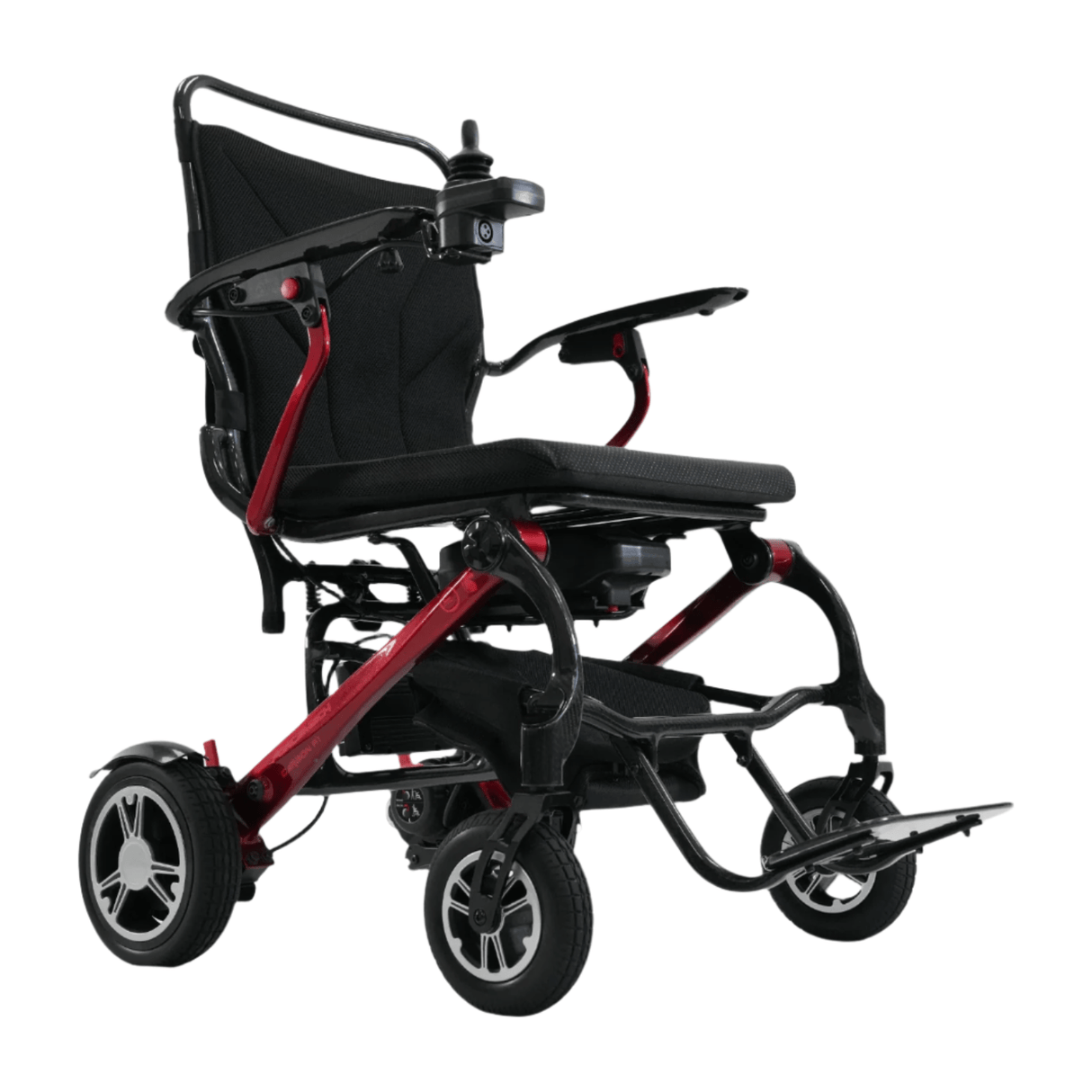

The Forcemech Carbon F1 is a lightweight power chair built with a full carbon fiber frame for strength, portability, and efficient everyday performance. Weighing approximately 33 lbs without the battery, it offers a compact folding design for convenient storage and transport.

Dual 200W motors and an all-directional joystick provide smooth operation and responsive control, while electromagnetic braking supports stable handling. The quick-fold structure allows fast setup and portability, and the compact size makes it suitable for indoor and outdoor environments.

Key Features:
– Full carbon fiber frame for lightweight durability
– Quick folding design for transport and storage
– Dual 200W motors for consistent performance
– All-directional joystick with electromagnetic braking
– Compact folded size for easy handling

Specifications:
– Overall Dimensions: 27" × 24" × 38"

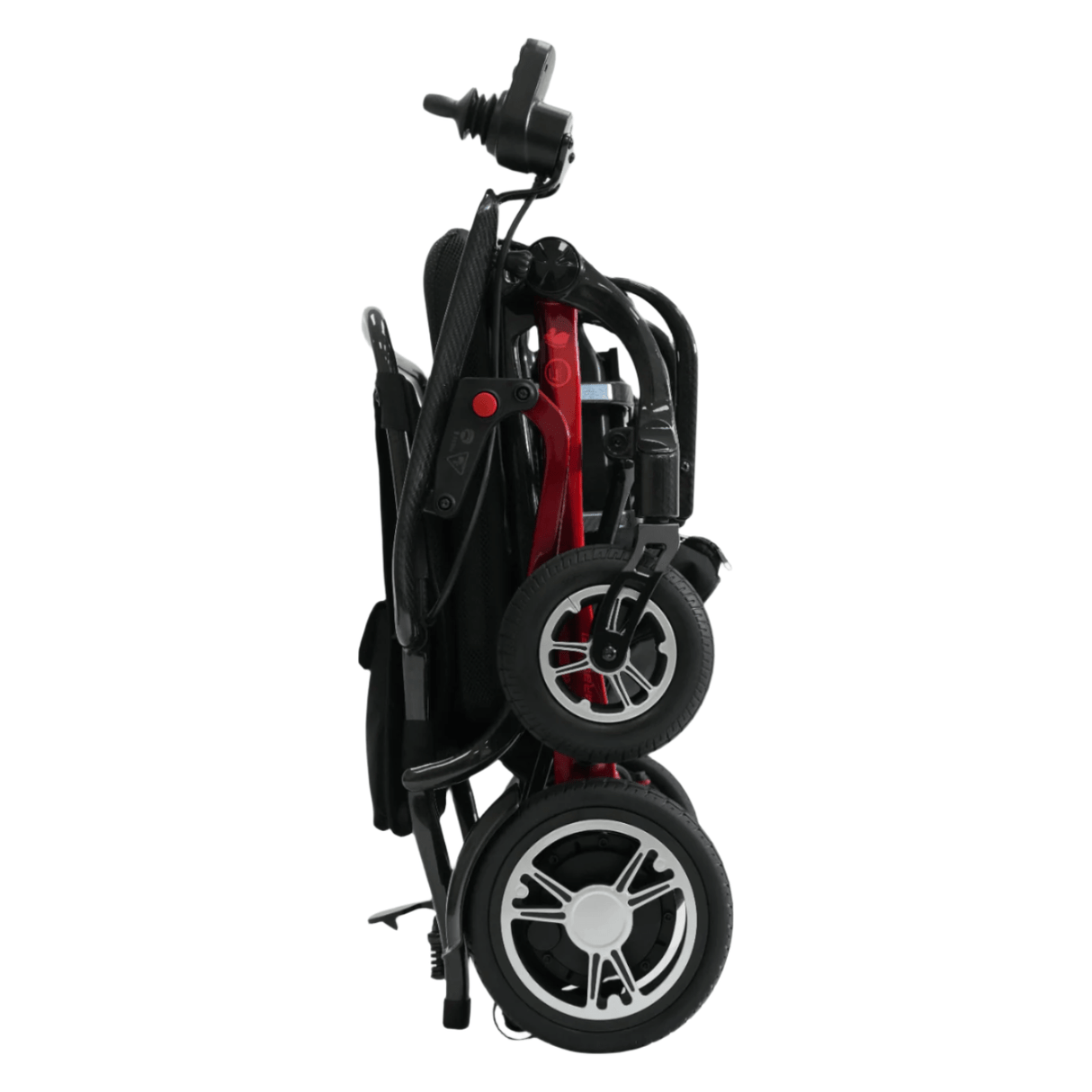

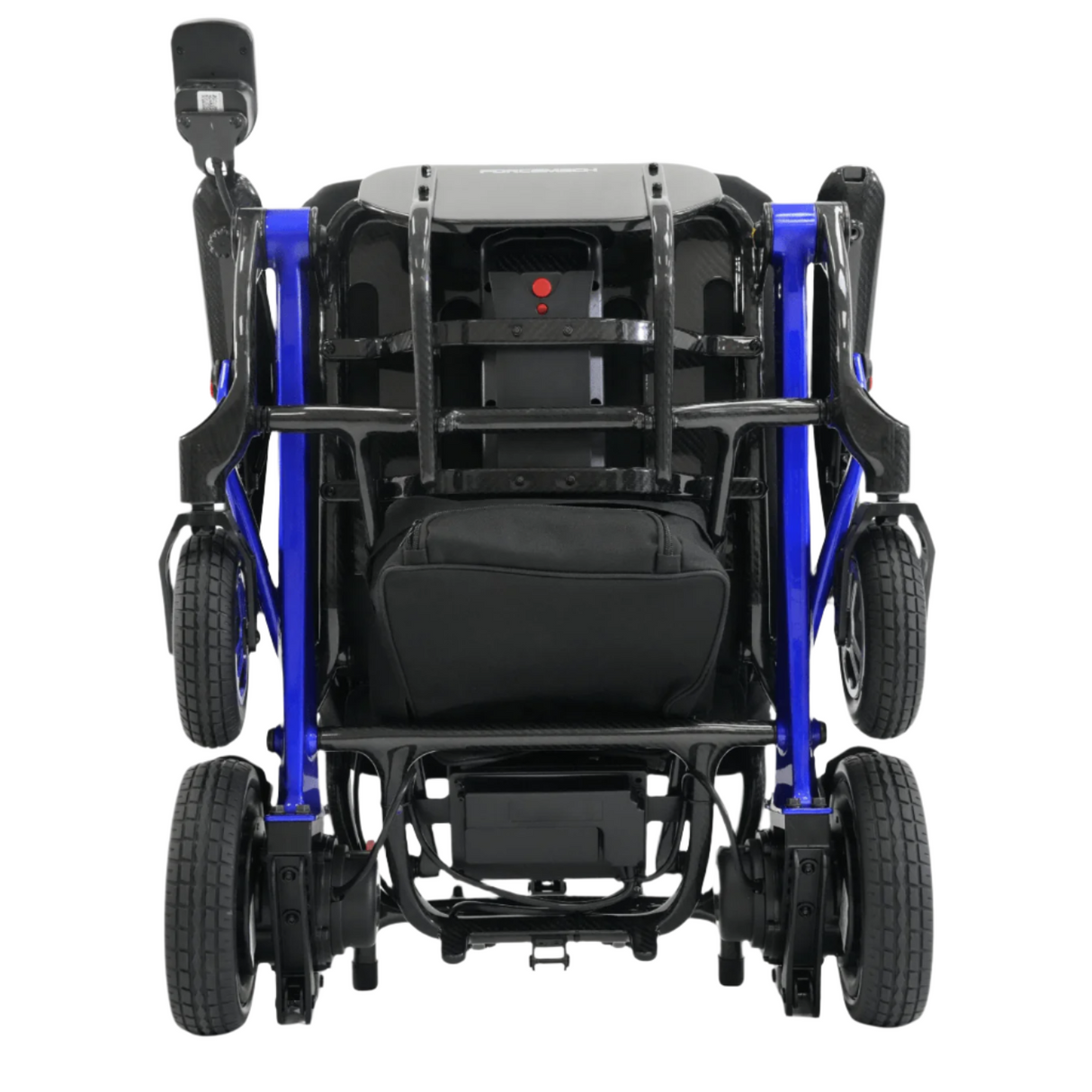

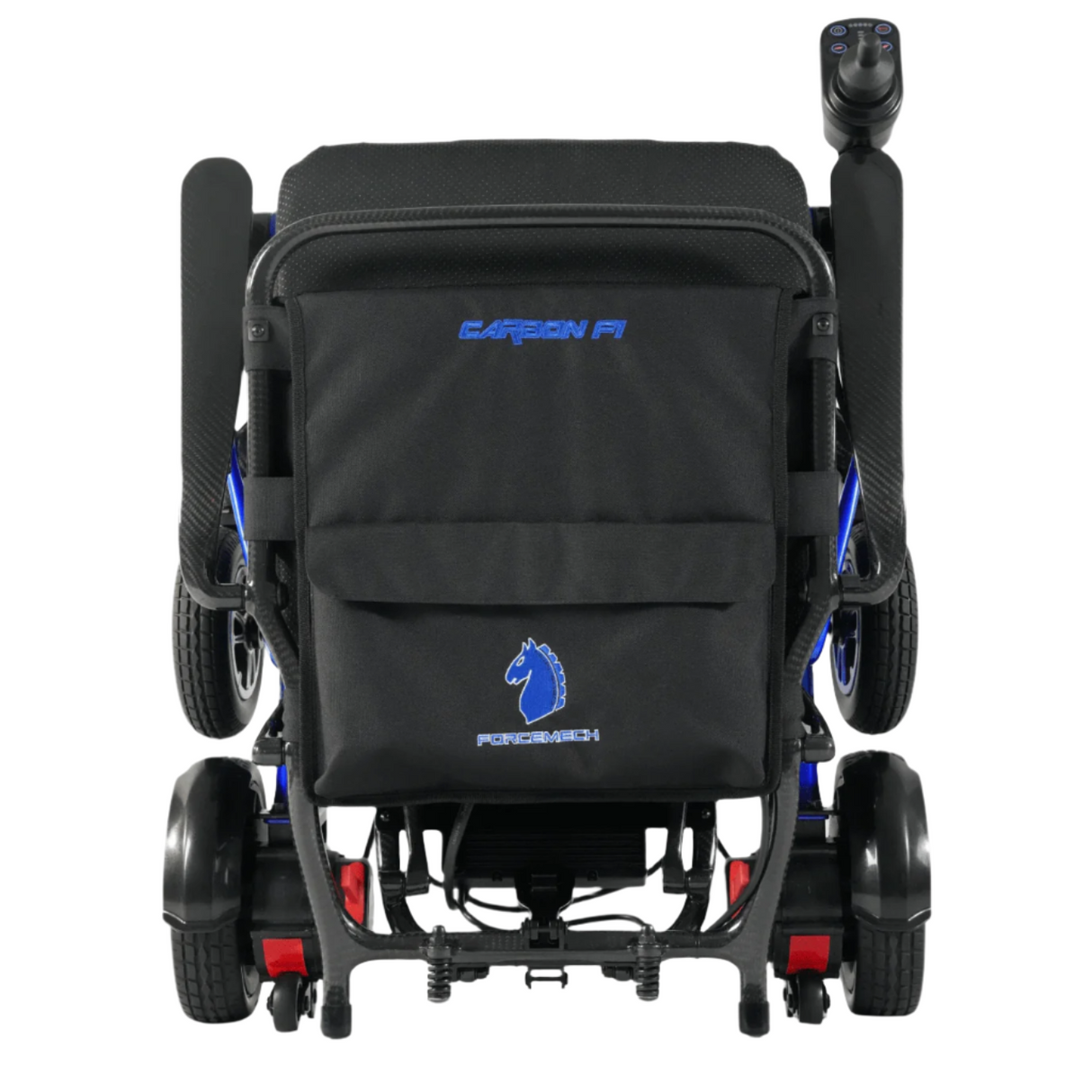

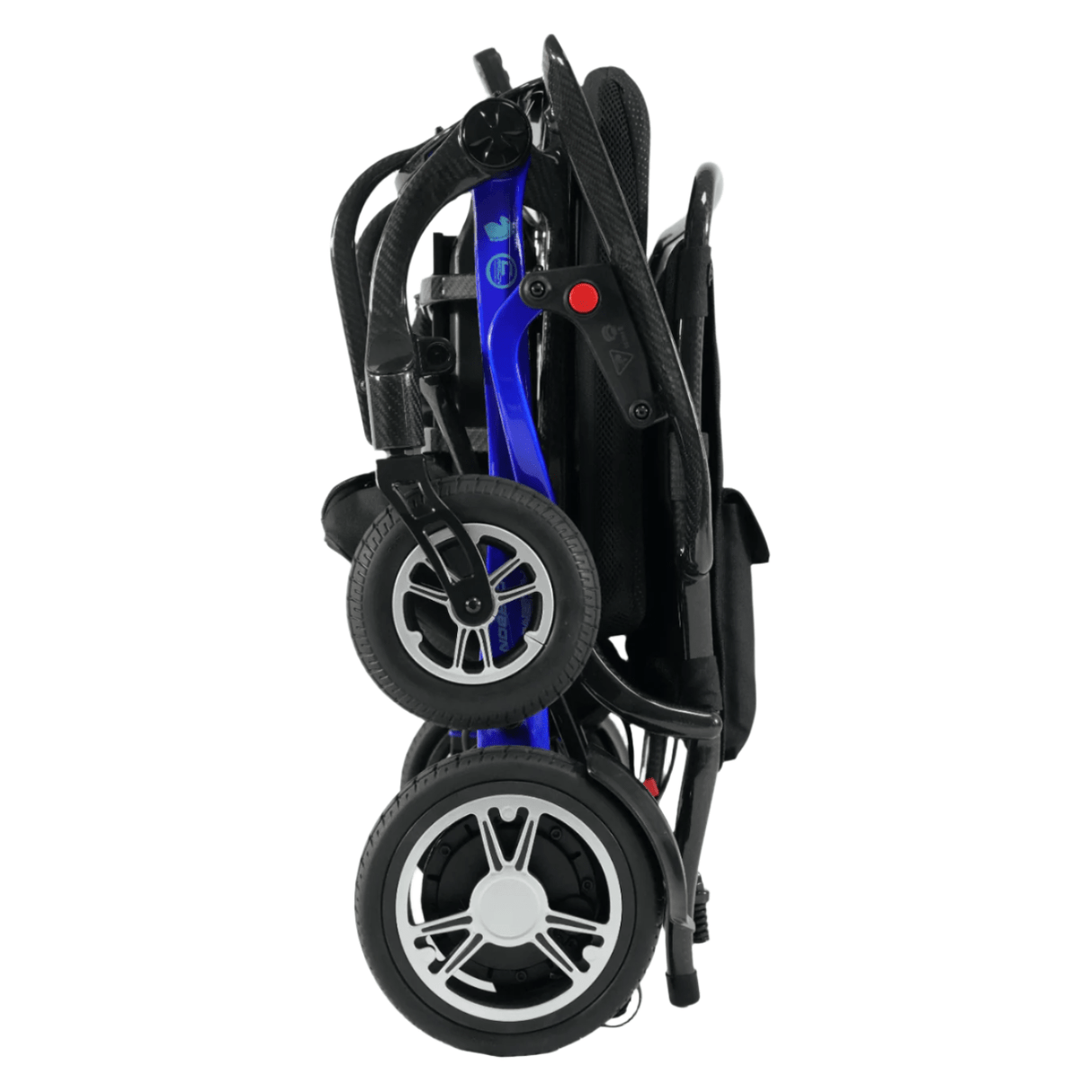

– Folded Dimensions: 28" × 24" × 13"
– Weight (with battery): 35 lbs
– Weight (without battery): 33 lbs
– Battery Weight: 2 lbs
– Turning Radius: 24"
– Ground Clearance: 2"
– Maximum Climbing Degree: 9°
– Maximum Speed: Up to 4 mph
– Driving Distance: Up to 10 miles per charge
– Seat Depth: 17"
– Seat Cushion Width: 16.5"
– Space Between Armrests: 20"
– Seat Height from Ground: 20"
– Backrest Height: 16.5"
– Motor: 24V / 200W × 2
– Battery: 24V / 10Ah lithium
– Charger Output: 2A
– Controller Max Output Current: 35A
– Caster Wheel Diameter: 7"
– Drive Wheel Diameter: 8.5"

Warranty:
– Main Frame: 5 years
– Motors: 2 years
– Controller Unit: 1 year
– Joystick Controller: 1 year
– Batteries: 1 year

Warranty Exclusions:
– Damage from exceeding specified capacity
– Accidents, improper handling, or environmental damage
– Modifications using non-original components
– Consumable parts (cushions, tires, bearings)
– Routine maintenance and service labor

Designed for portability, durability, and reliable day-to-day performance.
